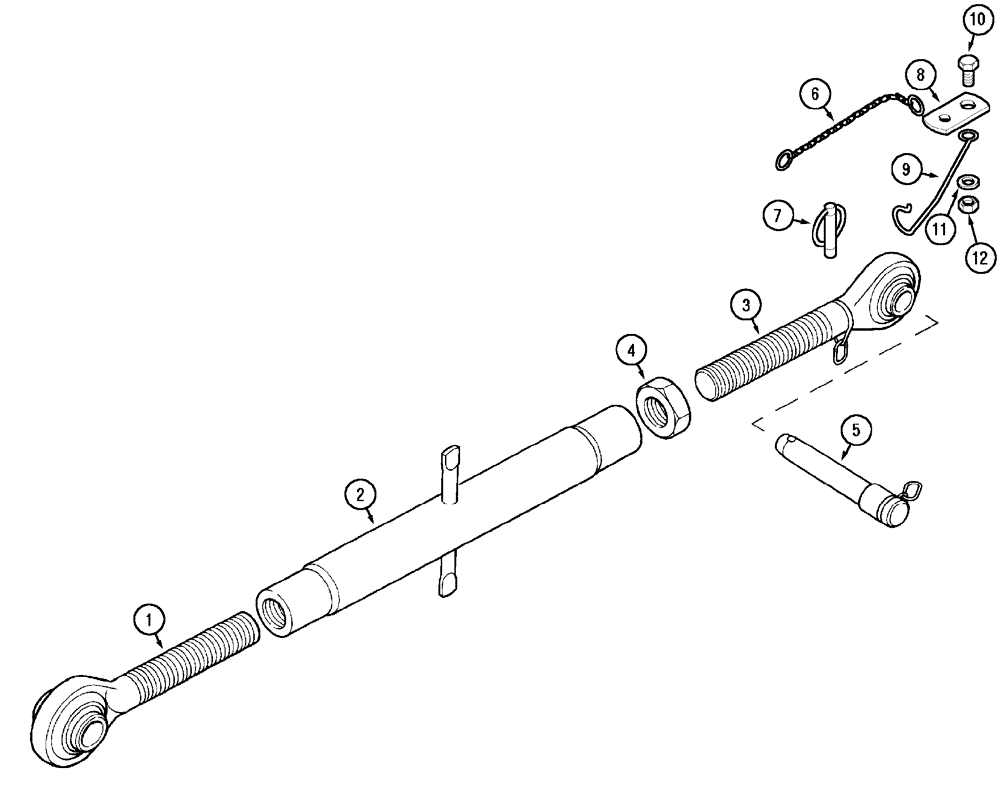

Запчасти Case IH C60 (09-19) - UPPER LINK - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

1

1328189C1

SCREW,M27 x 3, LH Threads

LH Thread

1шт.

2

1328196C1

TRUNNION,M27 x 3

1шт.

3

1328190C1

SCREW,M27 x 3

RH Thread

1шт.

4

905709R1

THIN NUT,Thin, M27 x 3

M27

1шт.

5

1328192C3

PIN,25.4mm OD x 134mm L

1шт.

1982154C2

CHAIN,Assembly, Lift Link

Consists Of 6,7

1шт.

6

NSS

NOT SOLD SEPARAT

Chain

1шт.

7

NSS

NOT SOLD SEPARAT

Pin

1шт.

8

128670A1

LARGE PLATE

PLATE, LARGE

1шт.

9

530050R5

SPRING CLIP

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

11

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.
