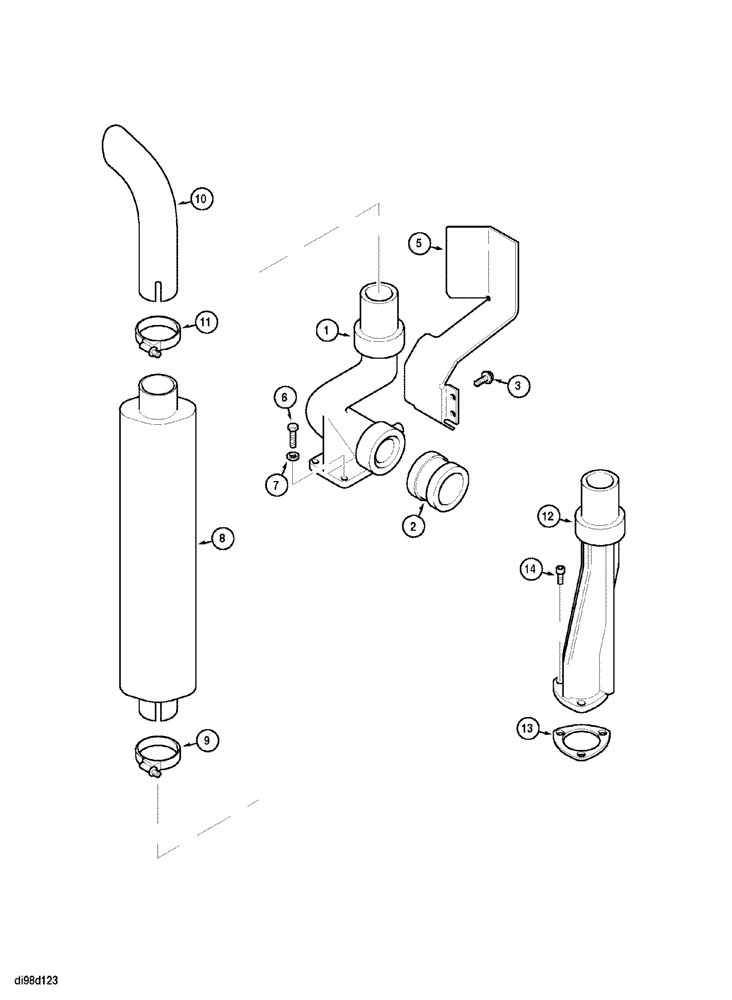

Запчасти Case IH C60 (02-10) - VERTICAL EXHAUST (02) - ENGINE

1

251916A1

ELBOW

C60

1шт.

2

252006A1

ADAPTER

C60

1шт.

3

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

252243A3

GUARD

C60

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

8

282084A2

MUFFLER

Includes 9

1шт.

9

283249A1

COLLAR

1шт.

10

283508A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , 260 mm

1шт.

10

283509A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , 420 mm

1шт.

11

283250A2

CLAMP

1шт.

12

235056A1

EXHAUST SYSTEM PIPE

C50

1шт.

13

235838A1

GASKET

1шт.

14

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

3шт.
