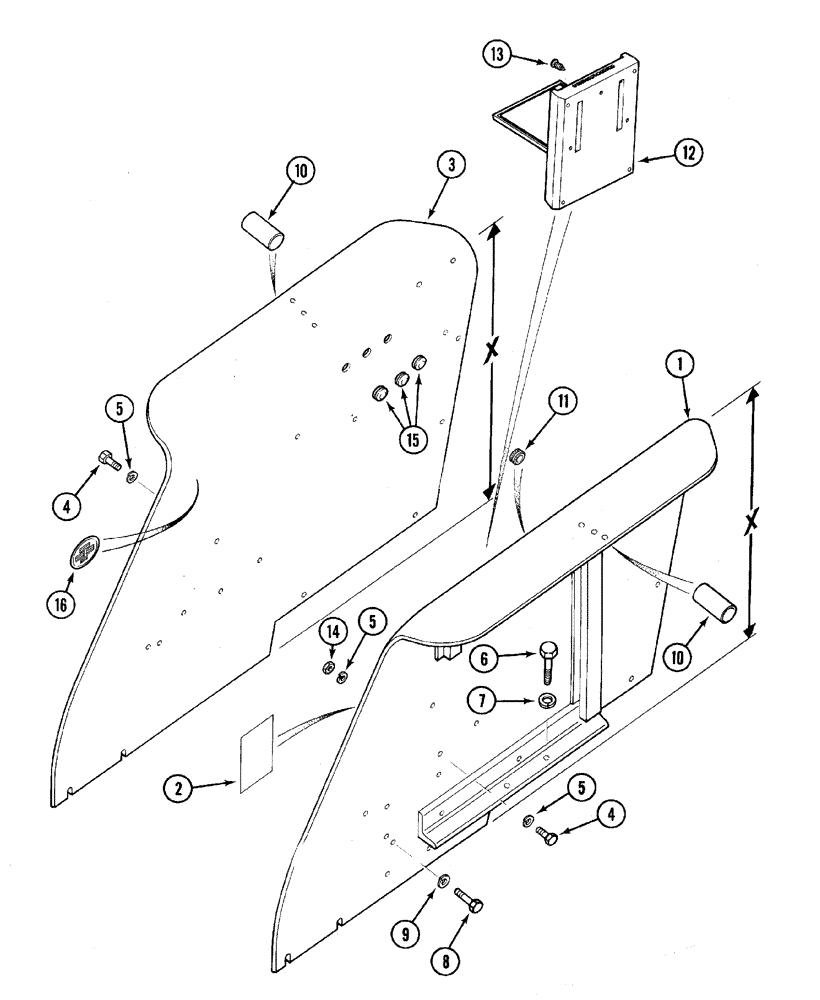

Запчасти Case IH C60 (09-14) - REAR FENDERS - CROWN TYPE (09) - CHASSIS/ATTACHMENTS

1

538639R6

FENDER ASSY.

X : 805 mm, Left, Low

1шт.

1

538641R7

FENDER ASSY.

X : 848 mm, Left, High

1шт.

1

275966A1

FENDER ASSY.

X : 912 mm, Left, Extra High

1шт.

2

REF

INSTRUCTION

Decal, Warning, See Page(s) 9-85 - 9-99

1шт.

3

275961A1

FENDER ASSY.

X : 805 mm, Right, Low

1шт.

3

275963A1

FENDER ASSY.

X : 848 mm, Right, High

1шт.

3

275965A1

FENDER ASSY.

X : 912 mm, Right, Extra High

1шт.

4

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 x 1/2

8шт.

5

492-11031

LOCK WASHER,5/16"

8шт.

6

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

7

492-11062

BEARING WASHER,5/8"

4шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

3125820R1

SLEEVE

3шт.

11

531625R1

GROMMET

2шт.

12

223935A1

BOX

1шт.

13

A162364

FASTENER

3шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

99964C1

PLUG

6шт.

16

NSS

NOT SOLD SEPARAT

Decal, Speed Chart

1шт.
