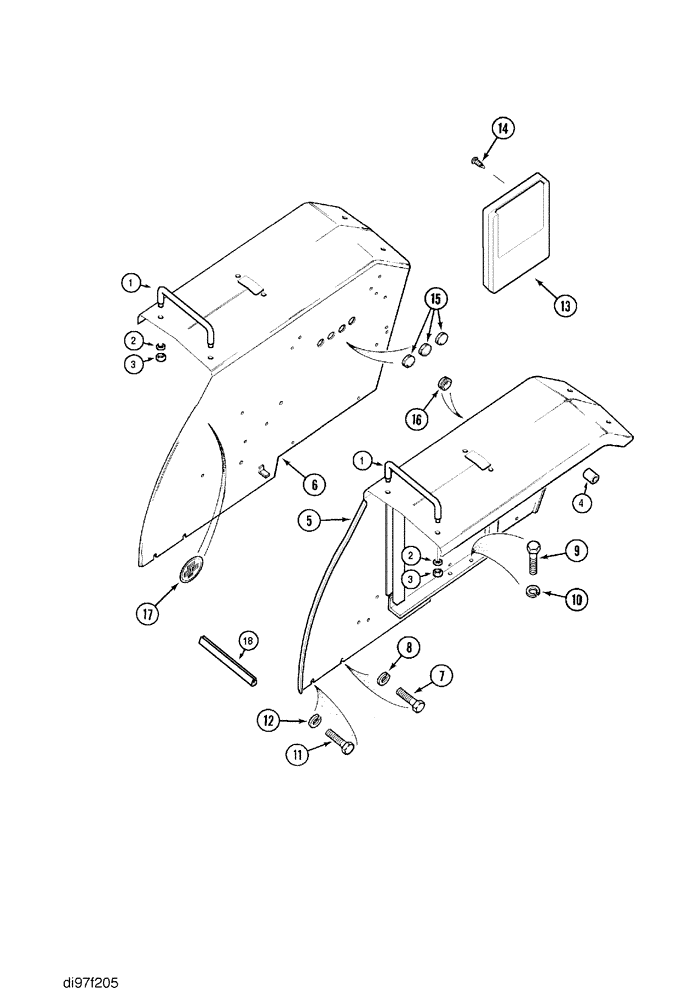

Запчасти Case IH C60 (09-13) - REAR FENDERS - FLAT TOP, N.A. ONLY (09) - CHASSIS/ATTACHMENTS

1

1533074C2

HANDLE

2шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

4

3125820R1

SLEEVE

1шт.

5

255493A1

FENDER ASSY.

Left, Low

1шт.

5

255489A1

FENDER ASSY.

Left, High

1шт.

5

255491A1

FENDER ASSY.

Left, Extra High

1шт.

6

255494A1

FENDER ASSY.

Right, Low

1шт.

6

255490A1

FENDER ASSY.

Right, High

1шт.

6

255492A1

FENDER ASSY.

Right, Extra High

1шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

6шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

8шт.

9

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

10

492-11062

BEARING WASHER,5/8"

4шт.

11

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

11

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

3шт.

13

223935A1

BOX

1шт.

14

A162364

FASTENER

3шт.

15

99964C1

PLUG

6шт.

16

531625R1

GROMMET

2шт.

17

NSS

NOT SOLD SEPARAT

Decal, Speed Chart

1шт.

18

144297A1

GASKET

2шт.
