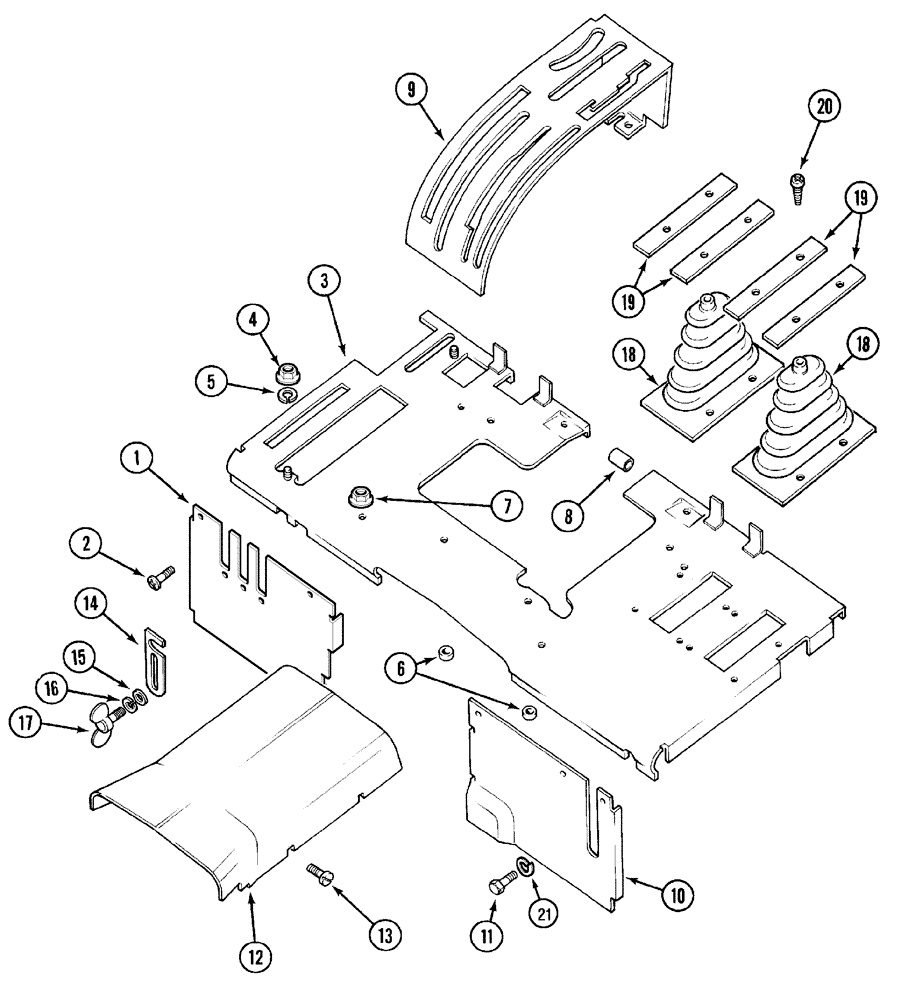

Запчасти Case IH C60 (09-11) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

94161C3

PROTECTION PLATE

Rear, Right

1шт.

2

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

5шт.

3

99656C4

PLATFORM ASSY.

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

5

492-11038

LOCK WASHER,3/8"

If so equipped

3шт.

6

401941R2

SPACER

2шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

3125820R1

SLEEVE

6шт.

9

1536841C2

HOUSING

1шт.

10

528638R4

PROTECTION PLATE

Rear, Left

1шт.

11

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

11

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

12

66290C1

COVER

1шт.

13

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

14

3125862R1

PLATE

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

16

492-11038

LOCK WASHER,3/8"

If so equipped

4шт.

17

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

1шт.

18

1502031C2

BELLOWS

2шт.

19

1502032C1

STRIP

4шт.

20

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

8шт.

21

892-11008

LOCK WASHER,8mm ID

3шт.
