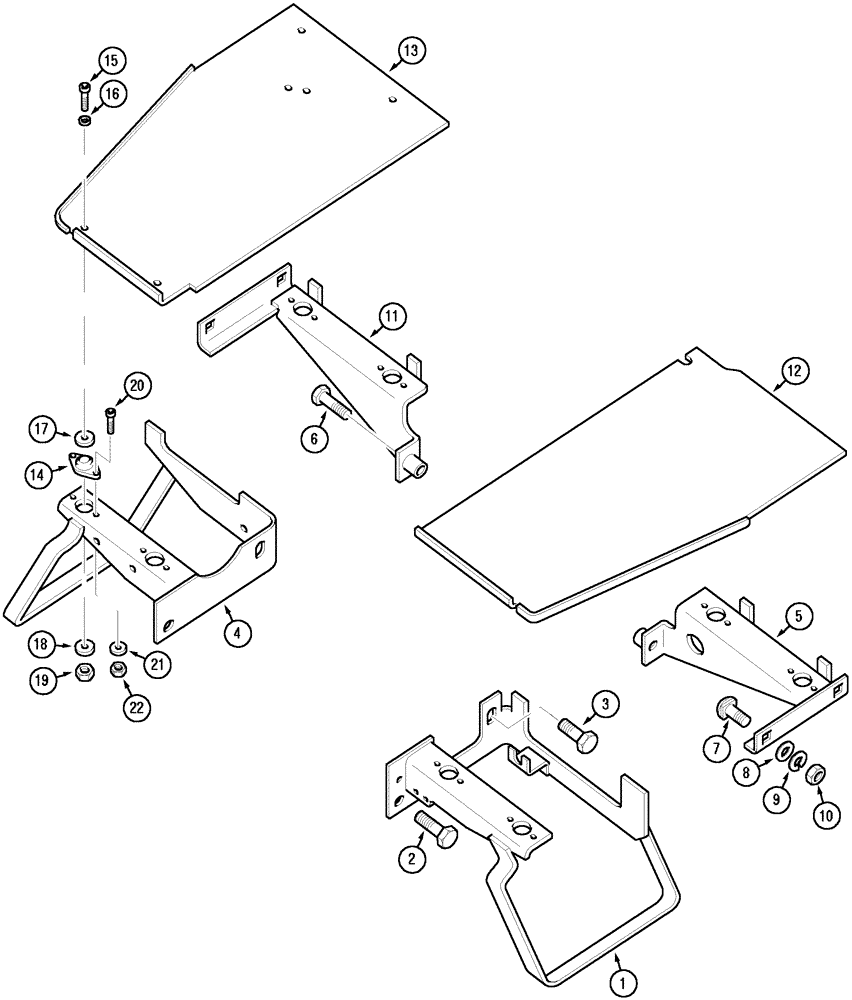

Запчасти Case IH C60 (09-10) - OPERATORS PLATFORM (09) - CHASSIS/ATTACHMENTS

1

292903A2

SUPPORT

Left Front

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

3

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

4

176120A2

SUPPORT

Right

1шт.

5

256361A3

SUPPORT

Left Rear

1шт.

6

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

2шт.

7

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

256362A2

SUPPORT

Right Rear

1шт.

12

1536026C1

PLATFORM

Left

1шт.

13

3123690R1

PLATFORM

Right

1шт.

14

3123709R1

SHOCK ABSORBER

8шт.

15

440-10816

SCREW,Cross Pan Hd, #8-32 x 1"

8шт.

16

495-21019

WASHER,#8

8шт.

17

3123710R1

WASHER

16шт.

18

492-11008

LOCK WASHER,#8

8шт.

19

225-14108

NUT,#8-32

8шт.

20

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

16шт.

21

492-11006

LOCK WASHER,#6

16шт.

22

225-14106

NUT,#6-32

16шт.
