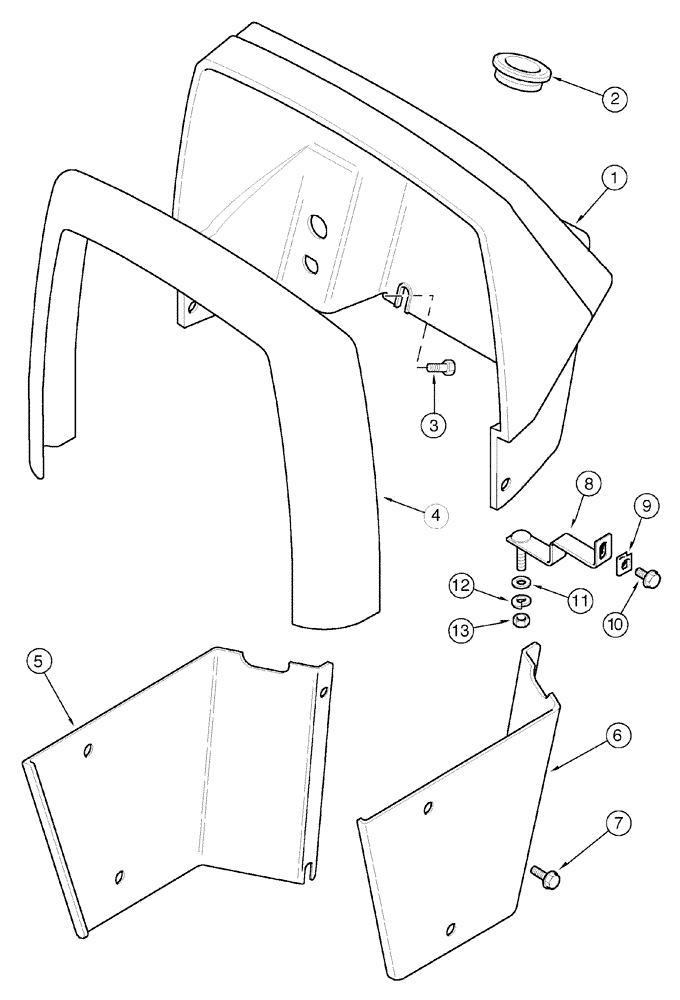

Запчасти Case IH C60 (09-09) - INSTRUMENT HOUSING (09) - CHASSIS/ATTACHMENTS

1

232672A4

PANEL, INSTRUMENTS

PANEL, INSTRUMENT

1шт.

1

294779A1

HOUSING

N.A. Only

1шт.

2

3123366R2

PLUG

1шт.

3

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

4

228151A1

SEAL

1320 mm

1шт.

5

3121638R3

GUARD

414 mm, Right

1шт.

5

1536922C1

GUARD

400 mm, Right

1шт.

6

3121637R3

GUARD

Left

1шт.

7

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4 x 5/8

1шт.

8

144653A1

SUPPORT

2шт.

9

96900C1

SPRING NUT,U, #10-16, Panel type

2шт.

10

1975919C1

SELF-TAP SCREW

2шт.

11

495-81117

WASHER,.344" x 1" x .120"

11/32 x 1 x 7/64

2шт.

12

492-11031

LOCK WASHER,5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

2шт.
