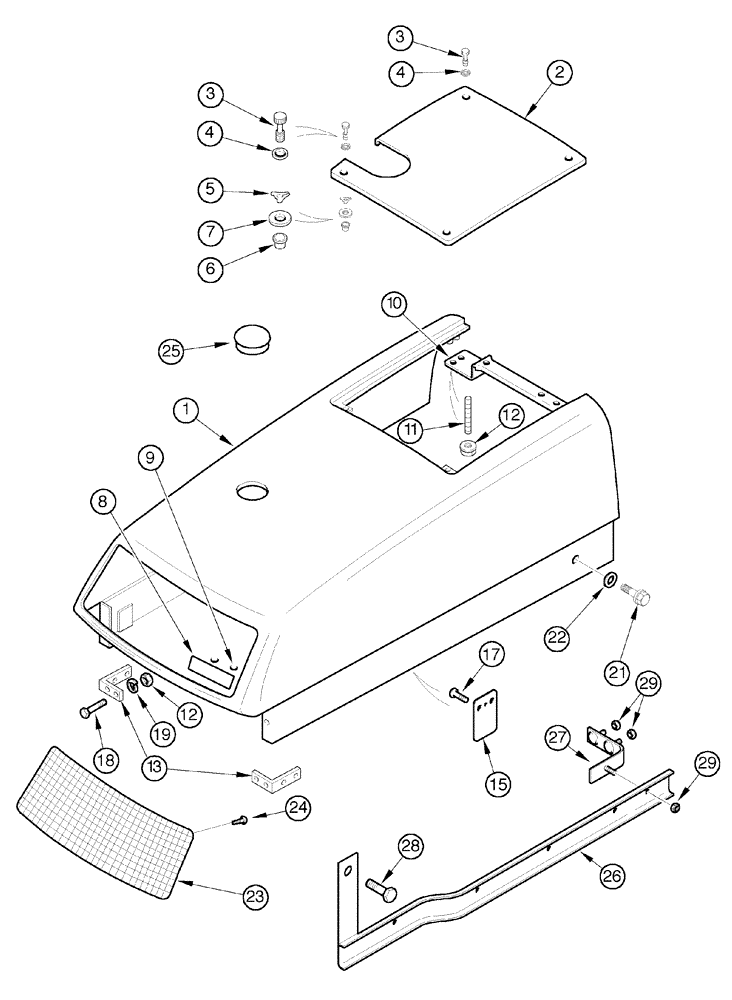

Запчасти Case IH C60 (09-08) - HOODSHEET (09) - CHASSIS/ATTACHMENTS

1

301670A1

HOOD ASSY.

1шт.

1

301669A1

HOOD ASSY.

Downswept Exhaust

1шт.

2

233067A1

COVER

1шт.

2

138243A1

COVER

Underslung Exhaust

1шт.

3

139161A2

SCREW,Sl Knurled Hd, M8 x 1.25 x 35mm

4шт.

4

139657A1

WASHER

4шт.

5

3221347R2

CIRCLIP

4шт.

6

140540A1

NUT

2шт.

7

495-51047

WASHER,0.47" ID x 0.88" OD x 0.06" Thk

2шт.

8

220980A1

EMBLEM CASE/IH

1шт.

9

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

10

277594A2

SUPPORT

1шт.

11

1537389C1

STUD

1шт.

12

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

13

138208A1

ANGLE

2шт.

15

NSS

NOT SOLD SEPARAT

Plate

4шт.

17

139445A1

SCREW

4шт.

18

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

19

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

21

139451A1

BOLT,Hex, 5/16" - 18 x 1 1/2", W/ Spcl Coating

2шт.

22

495-21038

WASHER,5/16"

2шт.

23

300994A1

GRILLE

1шт.

24

139445A1

SCREW

5шт.

25

277245A1

DOOR COVER

1шт.

26

282105A2

RAIL ASSY.

Left

1шт.

27

282107A1

SUPPORT

1шт.

28

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.
