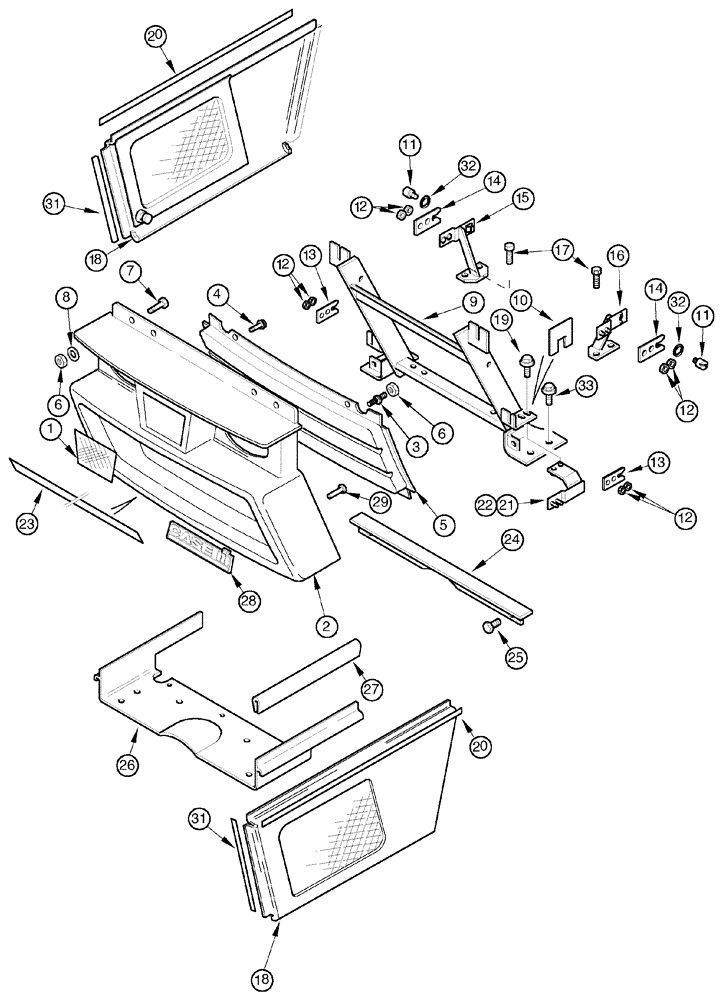

Запчасти Case IH C60 (09-07) - FRONT GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

305562A1

GRILLE

Consists Of 1 - 5

1шт.

1

137185A1

SIEVE

Middle

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Includes 3

1шт.

3

1537389C1

STUD

6шт.

4

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

4шт.

5

305561A1

SCREEN

1шт.

6

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

7

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

8

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

9

252544A4

SUPPORT

1шт.

10

99854C2

SHIM

1шт.

11

183331A2

BUTTON

2шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

1333180C1

CLIP

2шт.

14

1333181C1

CLIP

2шт.

15

252445A3

SUPPORT ASSY.

Right

1шт.

16

252448A3

SUPPORT ASSY.

Left

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

18

135229A3

PANEL, SIDE

Left, Includes 20,31

2шт.

18

135228A3

PANEL, SIDE

Right, Includes 20,31

1шт.

19

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

4шт.

20

137863A1

TAPE

2шт.

21

252469A2

SUPPORT

Left

1шт.

22

252468A2

SUPPORT

Right

1шт.

23

252821A2

SEAL

1шт.

24

242590A4

LARGE PLATE

PLATE, LARGE

1шт.

25

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

26

245191A5

GUARD

1шт.

27

275544A1

PROFILE

330 mm (13 in)

2шт.

28

220980A1

EMBLEM CASE/IH

1шт.

29

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

31

177355A1

GASKET

2шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

33

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.
