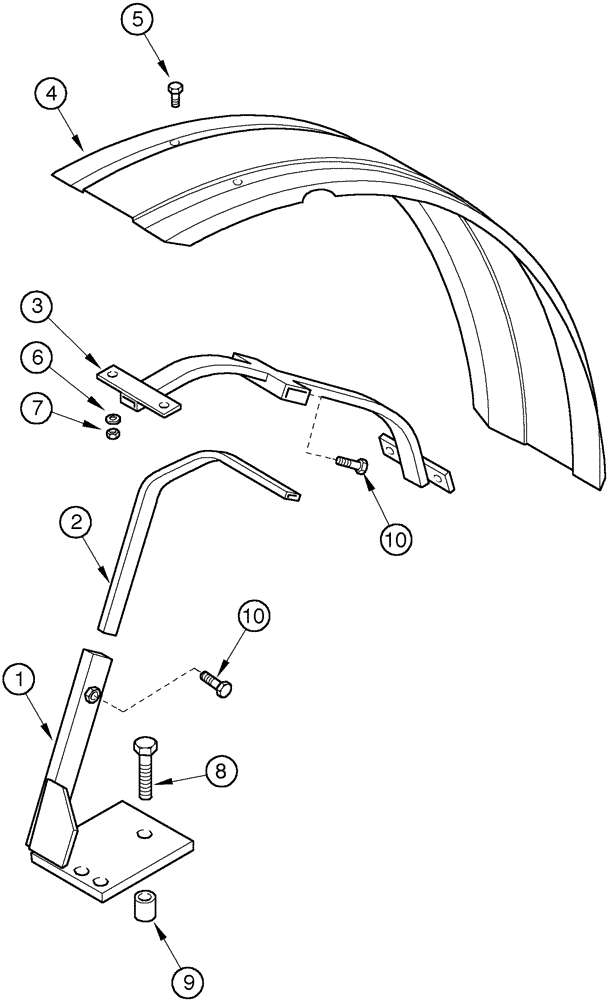

Запчасти Case IH C60 (09-06) - FRONT SPLASH SHIELDS, 4WD (09) - CHASSIS/ATTACHMENTS

1

130837A3

SUPPORT

Left

1шт.

1

130838A3

SUPPORT

Right

1шт.

2

130839A1

SUPPORT

2шт.

2

136429A3

SUPPORT,290 mm Length

2шт.

3

130840A1

SUPPORT

2шт.

3

143991A1

SUPPORT

2шт.

4

130841A2

SPLASH SHIELD

Left

1шт.

4

130842A2

SPLASH SHIELD

Right

1шт.

4

136421A2

FENDER ASSY.

Left

1шт.

4

136422A2

FENDER ASSY.

Right

1шт.

4

136425A2

FENDER ASSY.

Left

1шт.

4

136426A2

FENDER ASSY.

Right

1шт.

5

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

8шт.

5

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

8

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

6шт.

9

131342A1

SPACER

6шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.
