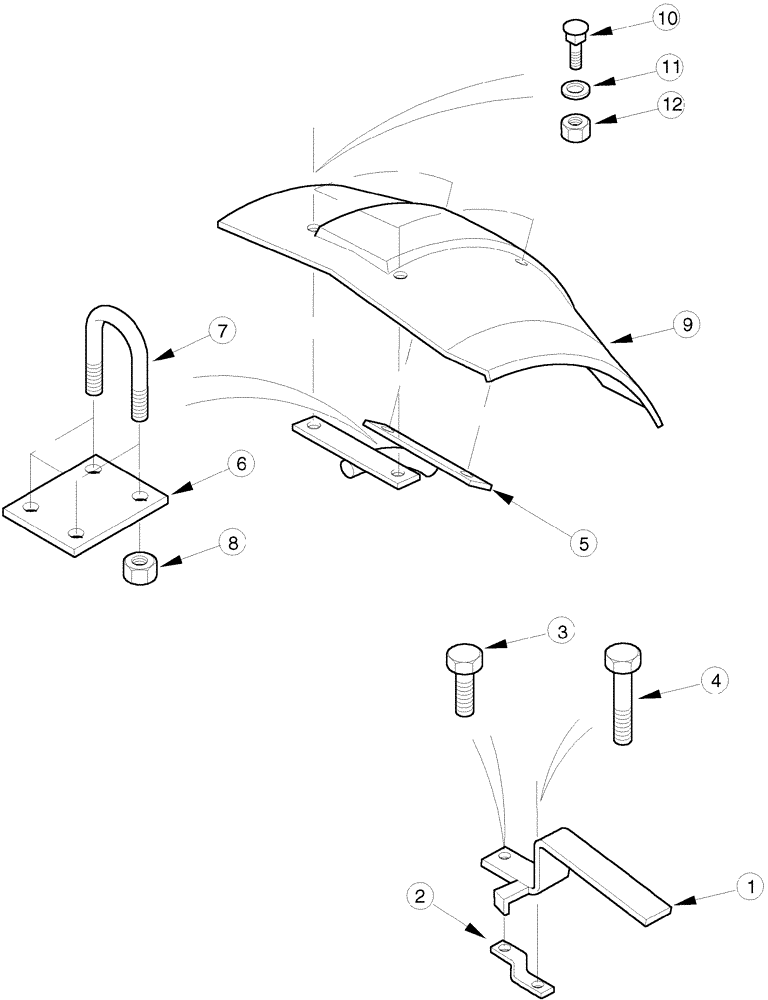

Запчасти Case IH C60 (09-05) - FRONT SPLASH SHIELDS, 2WD (09) - CHASSIS/ATTACHMENTS

1

175556A1

SUPPORT

Standard, Left

1шт.

1

175557A1

SUPPORT

Standard, Right

1шт.

1

178372A1

SUPPORT

Low Spindle, Left

1шт.

1

178373A1

SUPPORT

Low Spindle, Right

1шт.

1

178375A1

SUPPORT

High Spindle, Left

1шт.

1

178376A1

SUPPORT

High Spindle, Right

1шт.

2

175558A1

LARGE PLATE

PLATE, LARGE

2шт.

3

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

2шт.

4

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

5

175559A1

SUPPORT

2шт.

6

175560A1

LARGE PLATE

PLATE, LARGE

2шт.

7

175561A3

U-BOLT,M8 x 1.25 x 32mm W x 50mm L

BOLT "U"

4шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

9

175562A2

SPLASH SHIELD

2шт.

9

175563A2

FENDER ASSY.

2шт.

10

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

8шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.
