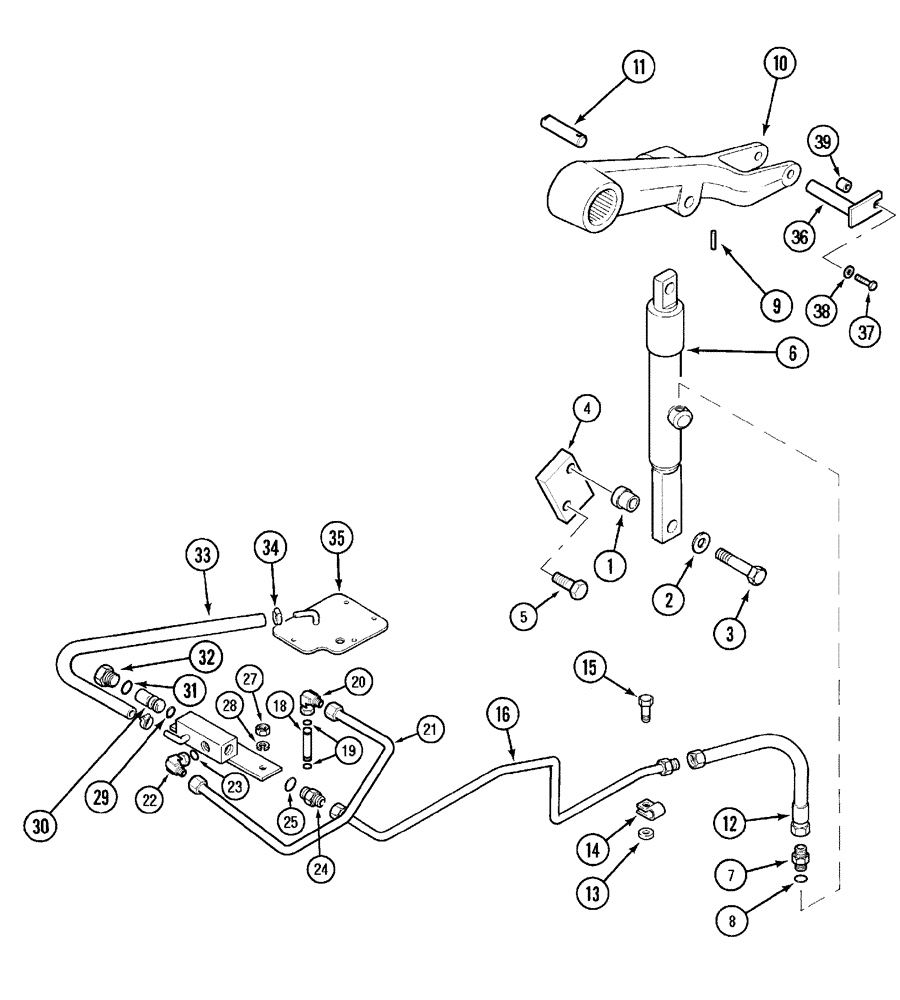

Запчасти Case IH C60 (08-24) - ASSISTOR RAM AND PIPES (08) - HYDRAULICS

1

225289A1

SLEEVE

1шт.

2

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

1шт.

3

426-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

1шт.

4

3129039R1

PLATE

1шт.

5

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

6

235430A1

CYLINDER ASSY.

50 mm, See Page(s) 8-61

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 8

1шт.

9

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm, Serial No. - JJE1002809

1шт.

9

838-3840

PIN,8mm OD x 40mm L, Coiled

8 x 40 mm, Serial No. JJE1002810 -

1шт.

10

310995A1

ROCKER ARM

Left, With Assistor Ram

1шт.

10

292068A1

ROCKER ARM

Right, With Assistor Ram

1шт.

10

292068A1

ROCKER ARM

Without Assistor Ram

2шт.

11

225165A3

PIN

1шт.

12

3121754R2

HOSE

325 mm

1шт.

13

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

1шт.

14

1971089C1

CLAMP

1шт.

15

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

16

1500584C2

HYD TUBE,9.53 mm OD, 475, 65 mm Length

1шт.

18

3118053R2

PIPE,9.804 mm ID, 14.287 mm OD, 60.27 mm Length

1шт.

19

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

20

3121147R1

ELBOW

90 deg

1шт.

21

3121752R2

TUBE ASSY.

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 23

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 25

1шт.

26

3121749R1

BLOCK ASSY.

1шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

30

400095R92

VALVE, CUSHION

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

536855R1

PLUG

M19

1шт.

33

3121755R2

HYDRAULIC HOSE,7.60 mm ID, 8.50 mm ID x 375.00 mm, SAE 100R6 Class 14

375 mm (14-7/8 in)

1шт.

34

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

35

99973C2

COVER

1шт.

36

225163A1

PIN

2шт.

38

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

39

1331994C1

SPACER

2шт.

37

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
