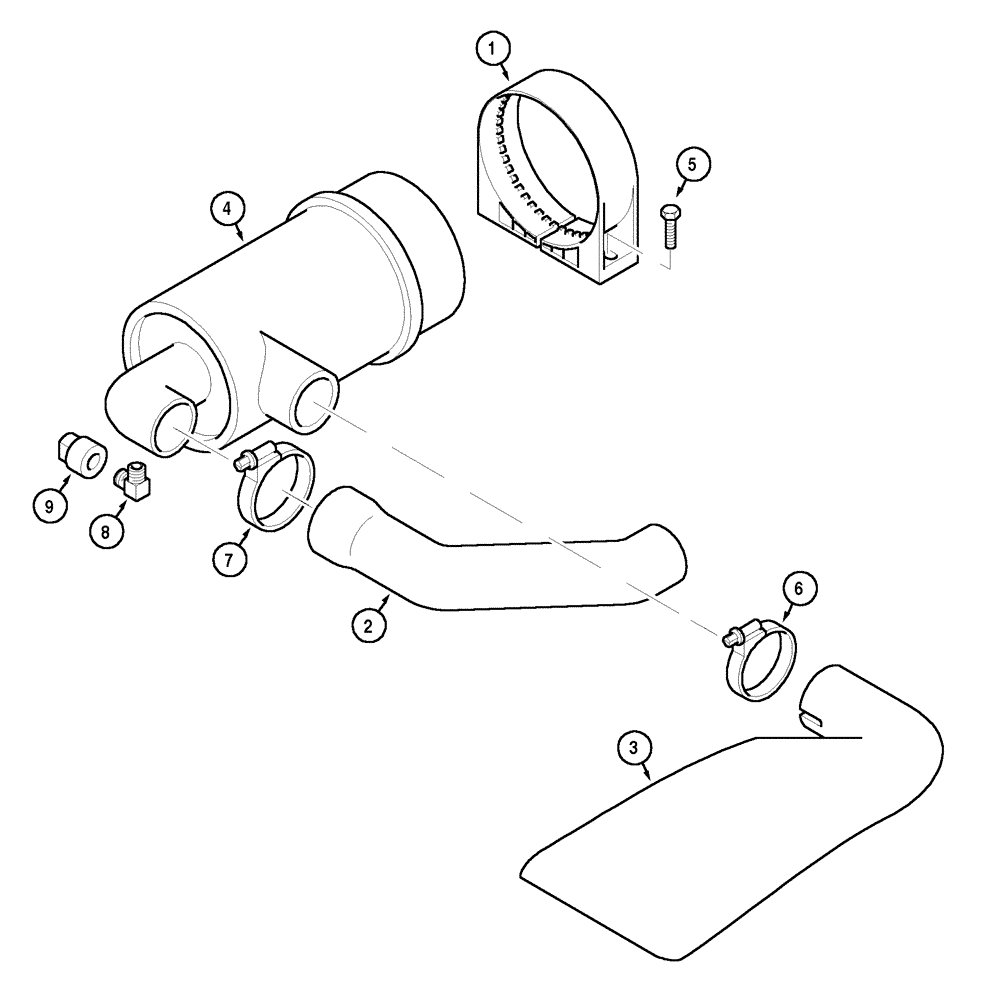

Запчасти Case IH C60 (02-08) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

235298A1

SUPPORT

1шт.

2

227264A3

LARGE HOSE

HOSE,LARGE , C50

1шт.

2

227265A3

INTAKE AIR HOSE,46.00 mm ID, 63.50 mm ID

C60

1шт.

3

244349A3

DUCT

1шт.

4

134439A1

AIR CLEANER

See Page(s) 2-19

1шт.

5

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

6

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

7

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

8

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

9

292740A1

RESTRICTION SWITCH

Restrictor, Serial No. - JJE1015145

1шт.

9

279492A1

RESTRICTION SWITCH

Restrictor, Serial No. JJE1015146 -

1шт.
