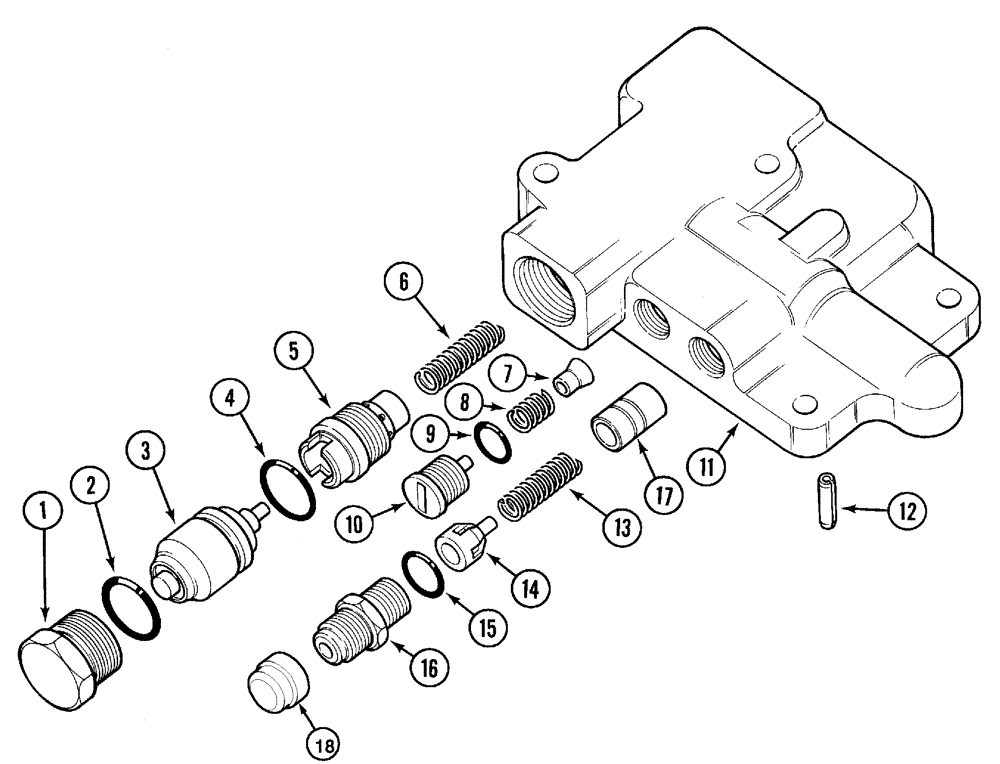

Запчасти Case IH C60 (08-21) - UNLOADING AND FLOW CONTROL VALVE (08) - HYDRAULICS

1536517C3

VALVE, CONTROL

Position Control, Consists Of 1 - 18

1шт.

256282A1

VALVE

Consists Of 1 - 17

1шт.

1

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. 2

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

376762R11

PISTON ASSY.

1шт.

4

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

5

530138R1

BODY

1шт.

6

530141R1

SPRING

1шт.

7

389587R3

CHECK VALVE

1шт.

8

535547R1

SPRING

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

399851R1

PLUG

1шт.

11

NSS

NOT SOLD SEPARAT

Body Assy

1шт.

12

38-31616

PIN,6.35mm OD x 25.4mm L, Coiled

1/4" x 1", Coiled

1шт.

13

530142R1

SPRING

1шт.

14

58367C1

GUIDE

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Spool

1шт.

18

1536333C1

UNION

1шт.
