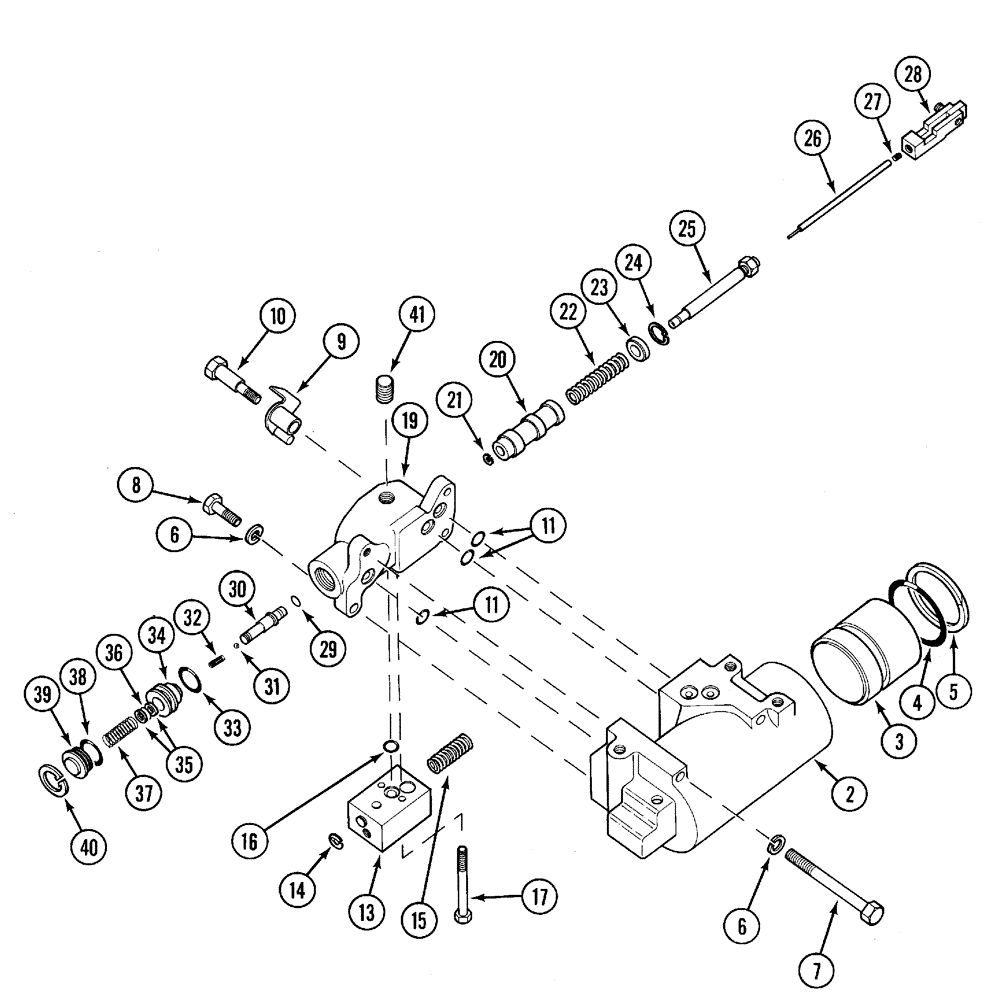

Запчасти Case IH C60 (08-20) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS

303616A1

CYLINDER ASSY.

Includes 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder

1шт.

3

399886R1

PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W

1шт.

4

238-6338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

Trans No. - JKA403126

1шт.

5

375936R1

BACK-UP RING

Trans No. - JKA403126

1шт.

5

295075A1

SEAL

Trans No. JKA403127 -

1шт.

6

92-11038

LOCK WASHER,3/8"

2шт.

7

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9

399889R1

ARM ASSY.

1шт.

10

399892R1

BOLT,Shldr, Hex, 3/8" - 16 x 2.25"

1шт.

11

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

3шт.

60651C91

VALVE

Consists Of 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Action Control Valve

1шт.

14

100-3431

SNAP RING,#31, Ext, E-Type

1шт.

15

547499R1

SPRING

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

399893R92

VALVE

Draft Control, Consists Of 19 - 40

1шт.

19

399894R1

BODY

With Spool, Includes 20

1шт.

20

NSS

NOT SOLD SEPARAT

Spool

1шт.

21

376771R1

RING, SNAP

RING SNAP

1шт.

22

395005R2

SPRING

Main Valve

1шт.

23

376759R1

RETAINER

1шт.

24

100-21100

SNAP RING,1.00", Int, #100

1шт.

25

376756R12

HYD CYL SLEEVE

1шт.

26

376763R1

ROD

Drop Valve

1шт.

27

178-897

SET SCREW,Hex Soc, #8-36 x 1/4"

1шт.

28

527617R1

ARM ASSY.

1шт.

29

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

30

392041R2

VALVE

1шт.

31

211-1006

BALL,3/16" Dia

1шт.

32

376765R1

SPRING

1шт.

33

406184R1

O-RING,0.139" Thk x 0.984" ID, -214, 70 Duro

1шт.

34

376766R1

VALVE POPPET

1шт.

35

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

37

376768R1

SPRING

1шт.

38

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

39

376770R1

PLUG

1шт.

40

100-21131

SNAP RING,1.312", Int, #131

1шт.

41

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

Not Illustrated

1шт.

404810R91

GASKET KIT

Consists Of 4,5,11,16,29,35,36,38

1шт.
