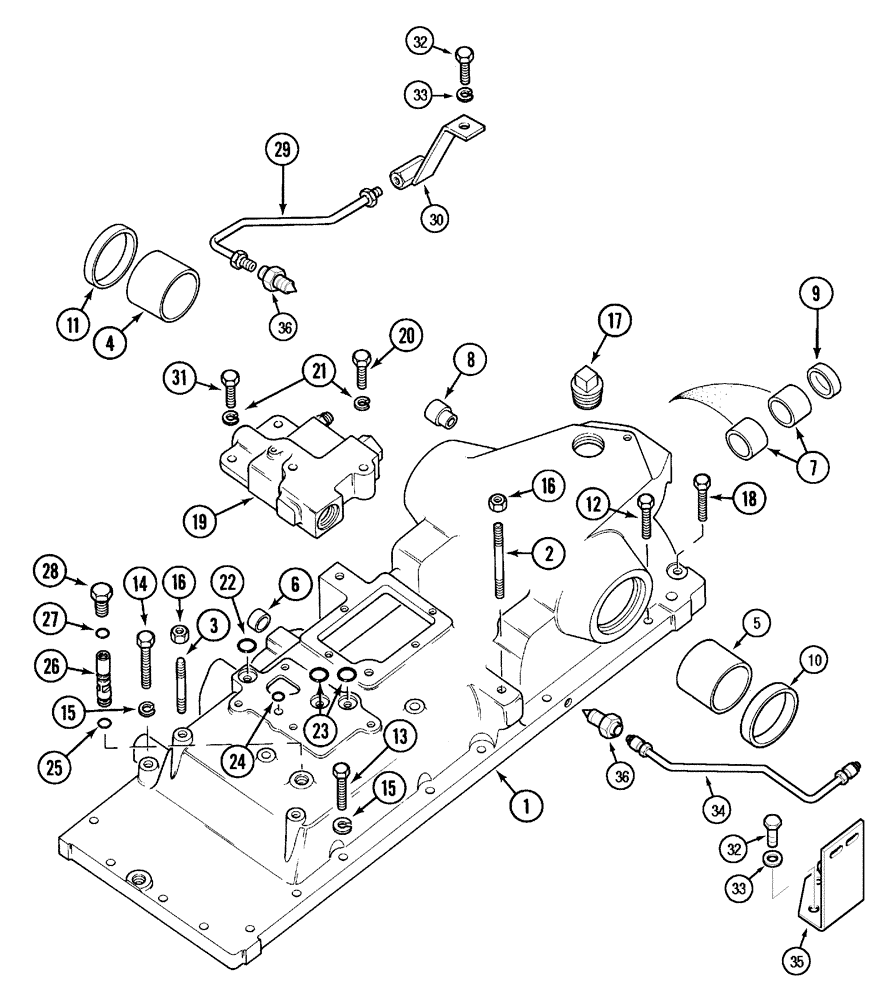

Запчасти Case IH C60 (08-19) - DRAFT CONTROL HOUSING (08) - HYDRAULICS

1

117573A3

HOUSING ASSY.

Includes 3 - 8

1шт.

1

237984A1

HOUSING ASSY.

Position, Includes 2 - 5,8 - 11

1шт.

2

531143R2

STUD

Long

2шт.

3

531144R1

STUD

2шт.

4

1500447C1

BUSHING

Right

1шт.

5

1500532C1

BUSHING

Left

1шт.

6

376011R1

BUSHING

Quadrant Shaft

1шт.

7

273279R91

BUSHING

2шт.

8

399993R1

BUSHING

1шт.

9

41-1614

PLUG,Cup, 7/8", Stainless

7/8 in dia

1шт.

10

A58223

OIL SEAL

1шт.

11

380770R91

OIL SEAL

Right

1шт.

12

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

1/2 x 1-5/8; 5

2шт.

13

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3/8 x 1-7/8; 5

11шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

92-11038

LOCK WASHER,3/8"

14шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

1537543C1

ADAPTER

1шт.

18

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

1/2 x 1-7/8; 5

4шт.

19

REF

INSTRUCTION

Valve Assy, Control, Unloading And Flow Control Valve, See Page(s) 8-49

1шт.

20

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

21

92-11038

LOCK WASHER,3/8"

4шт.

22

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

23

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

24

59099C1

O-RING,2.39mm Thk x 6.6mm ID

1шт.

25

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

26

400095R92

VALVE, CUSHION

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

536855R1

PLUG

M19

1шт.

29

1537329C1

PIPE

Right Brake

1шт.

30

1537326C1

SUPPORT

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

32

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

3шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

34

294061A1

HYD TUBE,4.75 mm OD, 194, 76 mm Length

Left Brake, If So Equipped

1шт.

35

294060A1

SUPPORT

If So Equipped, Use With 294061A1

1шт.

35

300937A1

SUPPORT

1шт.

36

82301R1

BLEEDER,3/8" - 24 x 117mm

2шт.
