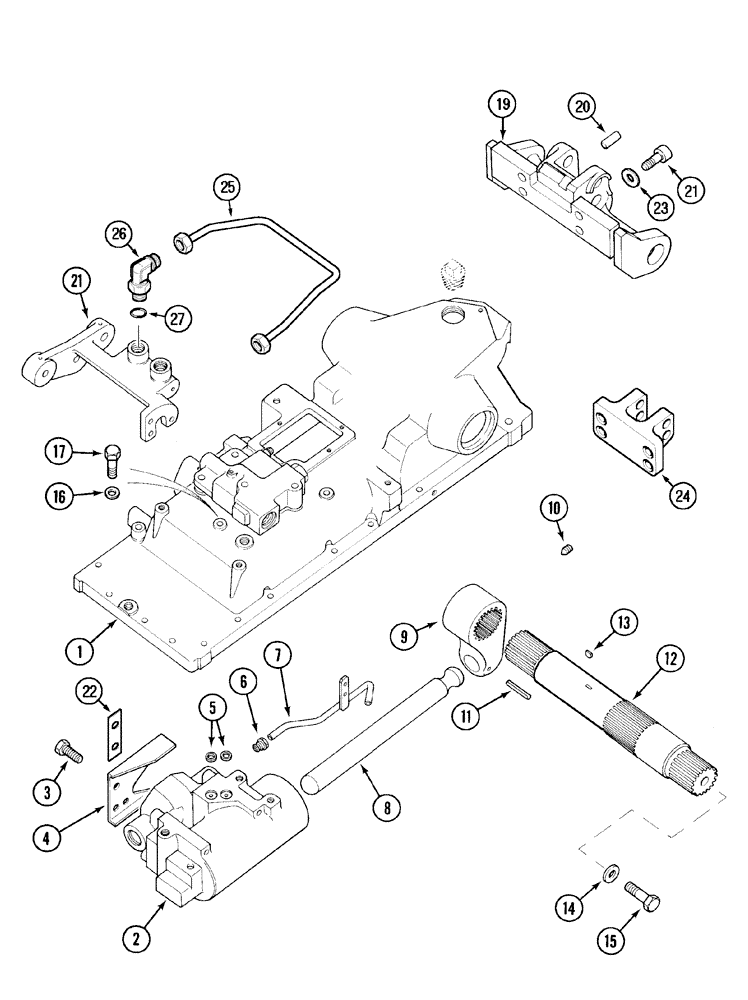

Запчасти Case IH C60 (08-18) - DRAFT CONTROL (08) - HYDRAULICS

1

REF

INSTRUCTION

Housing Assy, See Page(s) 8-41

1шт.

2

303616A1

CYLINDER ASSY.

Draft Control, See Page(s) 8-45

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

4

400026R2

SUPPORT

1шт.

5

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

6

222-504

TUBE NUT,9/16"-20

9/16

1шт.

7

60652C1

TUBE ASSY.

1шт.

8

400054R2

ROD

1шт.

9

400053R4

LEVER

1шт.

10

376069R1

SET SCREW

1шт.

11

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

5/16" x 2 1/4", Slotted

1шт.

12

246571A1

SHAFT

1шт.

13

376057R1

BUCKET TOOTH KEY

1шт.

14

537126R2

PLATE

2шт.

15

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

2шт.

16

400000R1

SEALING WASHER

3шт.

17

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

1/2 x 1-3/8; 5

3шт.

18

3129243R2

PIPE

1шт.

19

527229R92

SUPPORT

Draft Control, Includes 20

1шт.

20

37-158

DOWEL,5/16" x 1/2"

5/16 x 1/2

1шт.

21

61-36232

HEX SOC SCREW,5/8"-11 x 2"

5/8 x 2

4шт.

22

1536637C1

SPACER

1шт.

23

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

21/32 x 1-5/16 x 3/16

4шт.

24

1536179C1

SUPPORT

Position

1шт.

25

3129774R2

PIPE

1шт.
