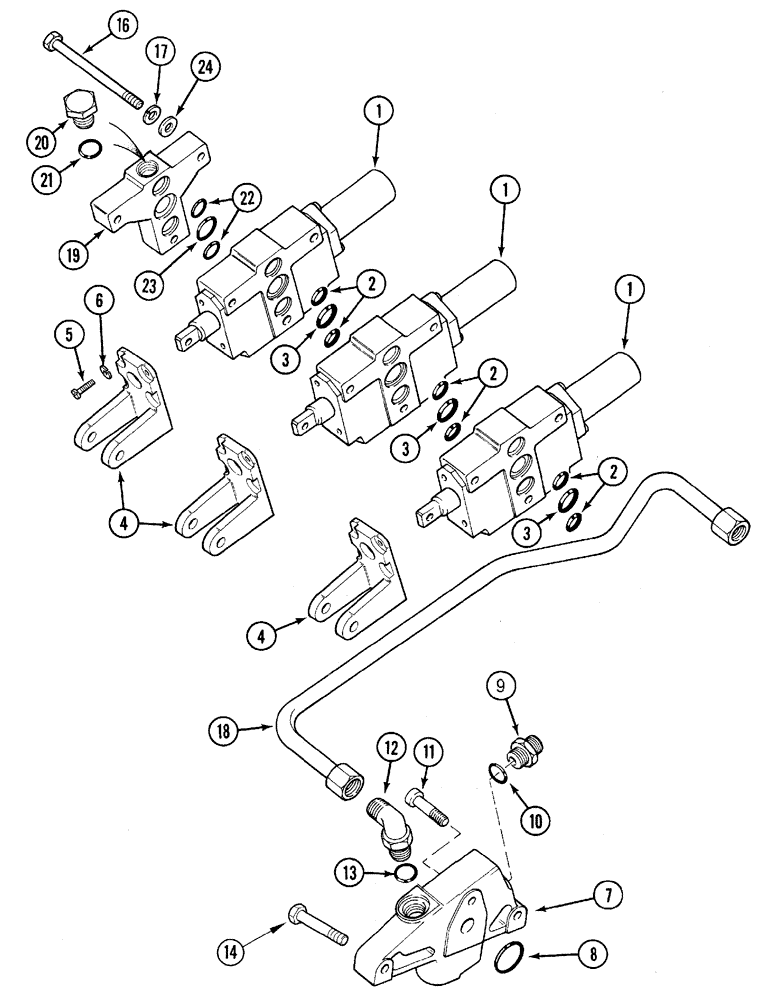

Запчасти Case IH C60 (08-13) - AUXILIARY VALVES (08) - HYDRAULICS

1

1287384C91

VALVE

Double Acting With 1 Check Valve, See Page(s) 8-35

1шт.

1

1287379C91

VALVE

Double Acting W/O Check Valves, See Page(s) 8-33

1шт.

1

1287385C92

VALVE

Double Acting With 2 Check Valves, See Page(s) 8-35

1шт.

2

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 ID x 2.5

2шт.

3

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 ID x 2.5

1шт.

4

1958026C2

SUPPORT

1шт.

5

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

For Support Holes With Recess

1шт.

5

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

For Support Holes without Recess

1шт.

6

892-11006

LOCK WASHER,M6

1шт.

7

94070C1

PLATE

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8 x 1-3/4

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj Or, Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

3/8 x 1-3/4; 8

2шт.

16

815-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

M8 x 80

3шт.

16

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

M8 x 120

3шт.

16

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

M8 x 160

3шт.

17

892-11008

LOCK WASHER,8mm ID

3шт.

18

1956743C1

HYD TUBE,0.625" OD

1шт.

19

1971165C1

COVER

1шт.

20

1971184C1

PLUG

1шт.

21

1971185C1

O-RING,13.3mm ID x 2.4mm Width

13.3 ID x 2.4

1шт.

22

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 ID x 2.5

2шт.

23

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 ID x 2.5

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.
