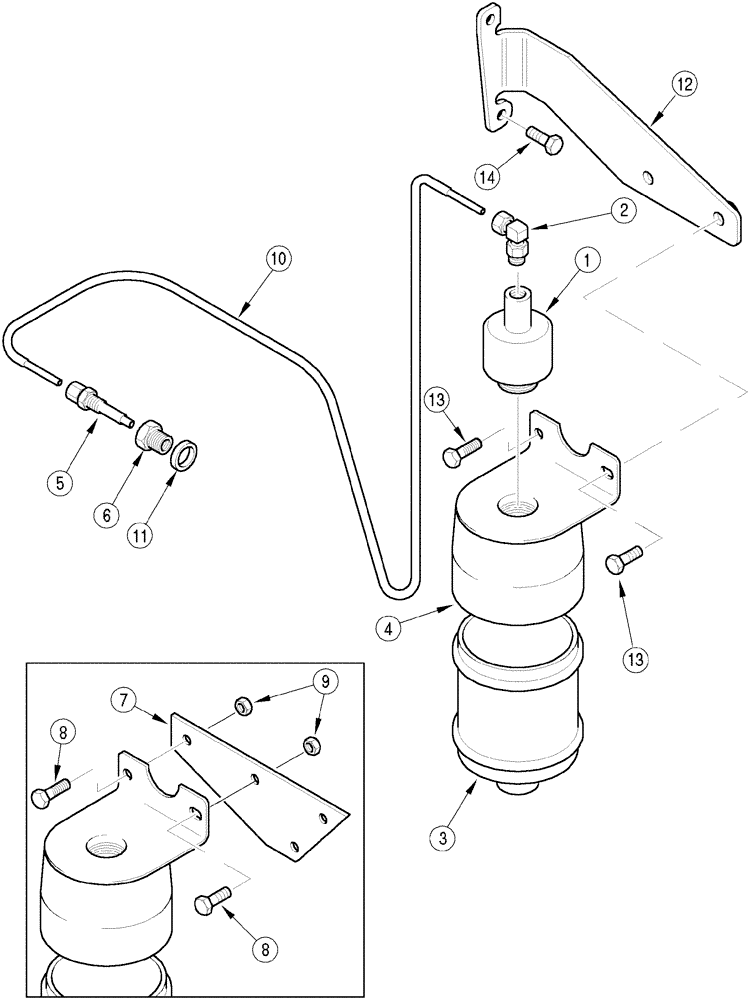

Запчасти Case IH C60 (02-07) - ETHER STARTING, N.A. ONLY (02) - ENGINE

185552A2

SOLENOID

12 V, Consists Of 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

2

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

3

190752A1

HOUSING

Ether

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

A171946

NOZZLE CAP

1шт.

6

3116081R1

JET

Serial No. - JJE1005380

1шт.

6

322177A1

JET

Serial No. JJE1005381 -

1шт.

7

302841A2

LARGE PLATE

PLATE, LARGE

1шт.

8

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

10

298126A1

TUBE,0.234" OD, 1100 mm Length

1100 mm

1шт.

11

307762A1

SEALING RING

1шт.

12

336769A1

SUPPORT

1шт.

13

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

2шт.

14

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

2шт.
