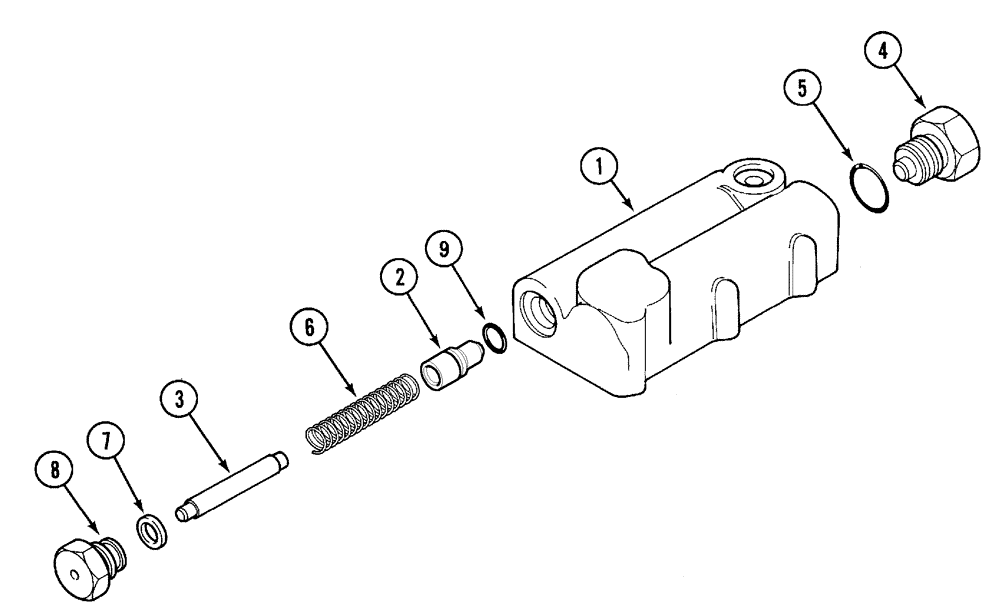

Запчасти Case IH C60 (08-10) - REGULATOR VALVE FORWARD AND REVERSE (08) - HYDRAULICS

110312A3

VALVE

Consists Of 1 - 8

1шт.

246591A2

PACKAGE

Consists Of 2,3,9

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Poppet, Valve, Order 246591A2

1шт.

3

246590A1

PIN

1шт.

4

86398C2

PLUG

1шт.

6

88426C1

SPRING

1шт.

7

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

1шт.

8

1954070C1

PLUG

1шт.

9

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
