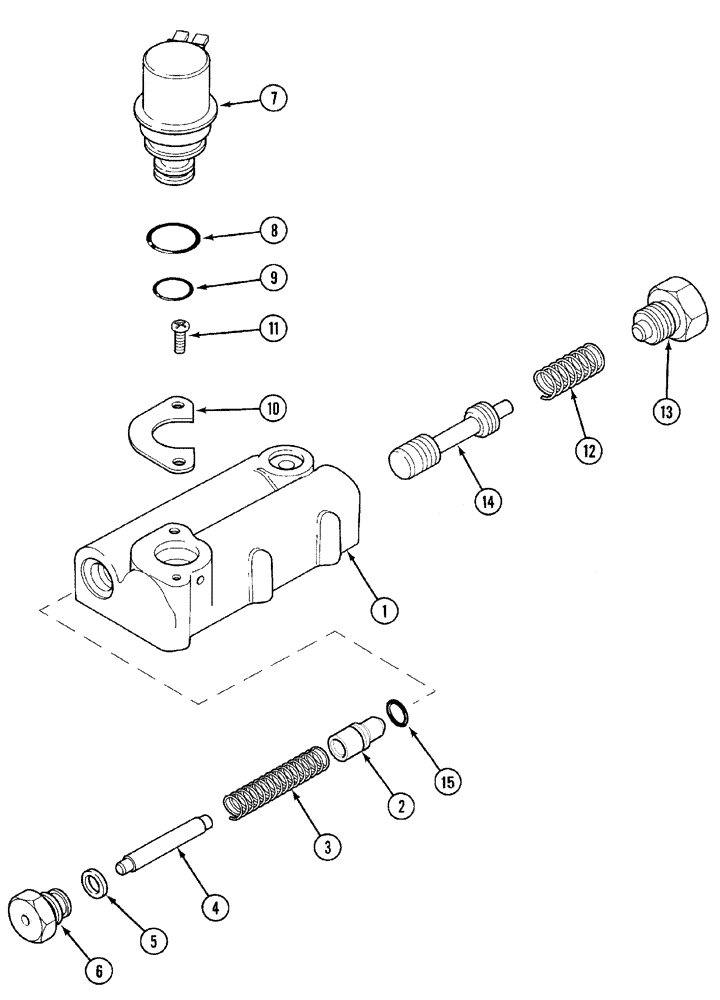

Запчасти Case IH C60 (08-09) - REGULATOR VALVE TWO SPEED POWER SHIFT (08) - HYDRAULICS

1

110313A3

PILOT VALVE

Includes 2 - 14

1шт.

246591A2

PACKAGE

Consists Of 2,4,15

1шт.

2

NSS

NOT SOLD SEPARAT

Poppet, Valve, Order 246591A2

1шт.

3

88426C1

SPRING

1шт.

4

246590A1

PIN

1шт.

5

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

1шт.

6

1954070C1

PLUG

1шт.

7

1958120C1

SOLENOID VALVE

Includes 8,9

1шт.

8

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

9

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

10

1289695C1

COLLAR

1шт.

11

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

2шт.

12

1289693C3

SPRING

1шт.

13

1954069C1

PLUG

1шт.

14

NSS

NOT SOLD SEPARAT

Spool

1шт.

15

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.
