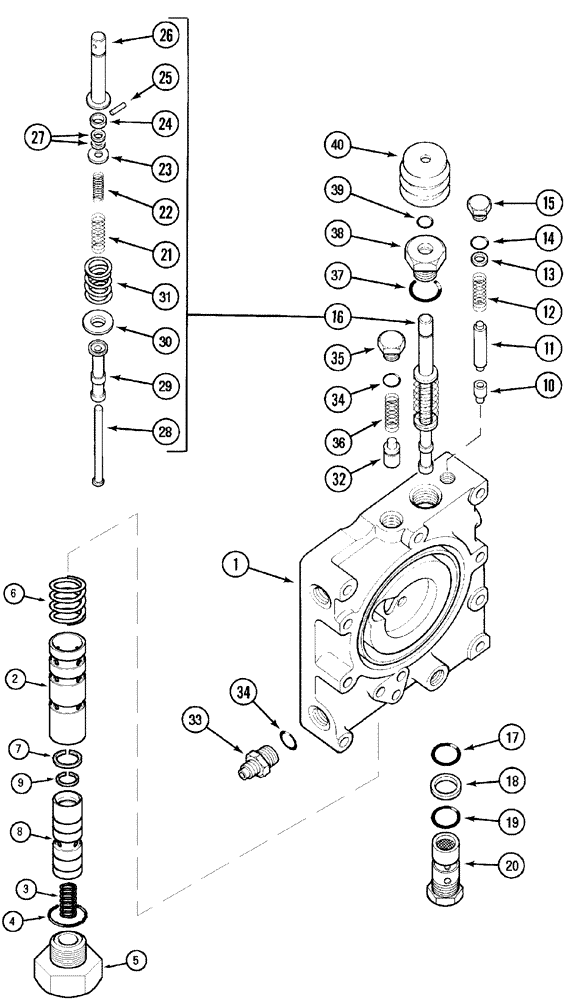

Запчасти Case IH C60 (08-05) - MULTIPLE CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
253545A3
VALVE
Consists Of 1 - 40
1шт.
1
NSS
NOT SOLD SEPARAT
Body, Includes 2
1шт.
142637A3
PACKAGE
Flow Control, Consists Of 2 - 6
1шт.
2
142650A1
SLEEVE
1шт.
3
142648A1
SPRING
1шт.
4
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
5
142639A1
SLEEVE
1-1/16 in
1шт.
6
142649A1
SPRING
1шт.
7
100-2168
SNAP RING,0.688", Int, #68
1шт.
8
142638A3
SPOOL
Includes 9
1шт.
9
800-2113
SNAP RING,M13, Int
13 mm
1шт.
10
399882R1
POPPET
1шт.
11
399881R2
PIN
1шт.
12
549850R1
SPRING
1шт.
13
363454R1
WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk
1шт.
15
573983R1
PLUG
1шт.
16
530775R94
VALVE
Consists Of 22 - 31
1шт.
17
238-6119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
1шт.
18
378985R2
BACK-UP RING
1шт.
19
238-5118
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
1шт.
20
399858R92
VALVE
2500 psi
1шт.
21
381760R1
SPRING
1шт.
22
399878R2
SPRING
1шт.
23
495-61020
WASHER,0.203" ID x 0.75" OD x 0.067" Thk
13/64 x 3/4 x 1/16
1шт.
24
530778R1
RETAINER
1шт.
25
405456R1
PIN
1шт.
26
530777R3
STEM
1шт.
27
100-3321
SNAP RING,#X21, .185" Dia, E-Type
1шт.
28
405454R2
PIN
1шт.
29
405452R2
VALVE
1шт.
30
405453R1
RETAINER
1шт.
31
530776R1
SPRING
1шт.
32
527482R1
VALVE,By-Pass
1шт.
33
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
Incl. 34
1шт.
34
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
35
529492R2
PLUG
1шт.
36
1502544C1
SPRING
1шт.
37
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
38
530781R2
GUIDE
1шт.
39
238-5113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
1шт.
40
530780R1
BOOT
1шт.
14
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 42
