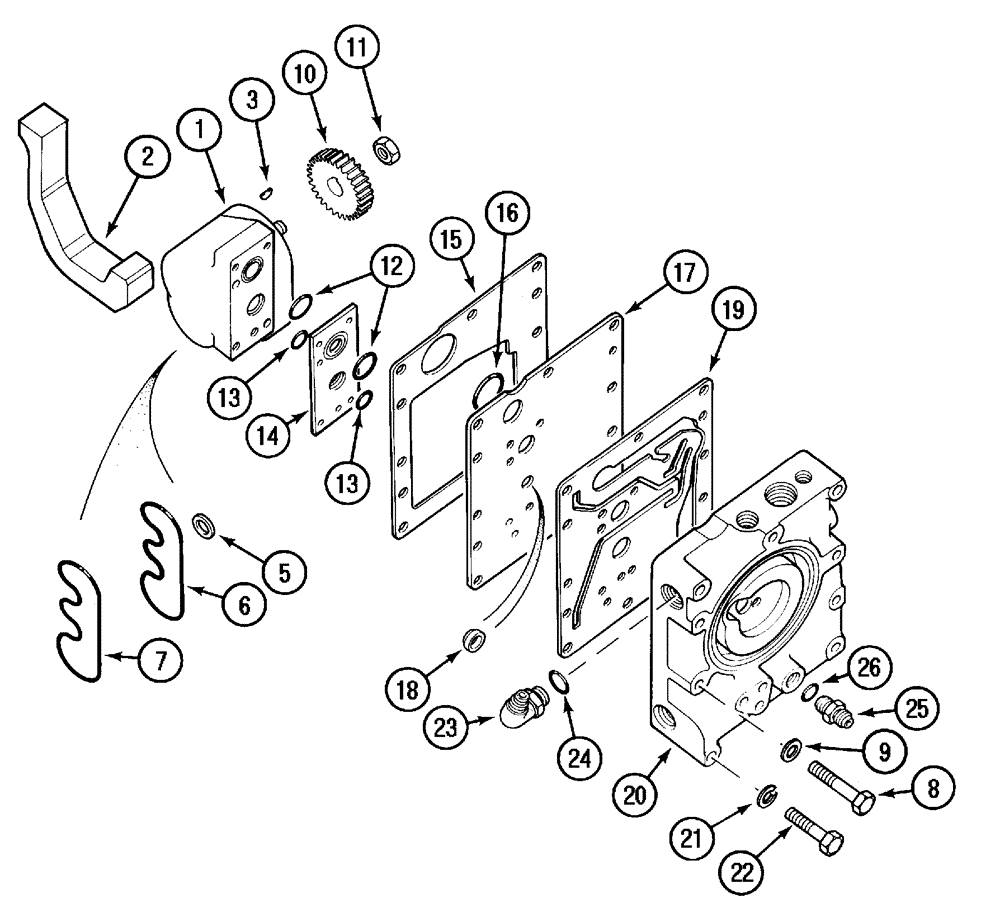

Запчасти Case IH C60 (08-04) - HYDRAULIC POWER SUPPLY AND MULTI-CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
308873A1
HYDRAULIC PUMP,23.2 CC
Includes 3 - 7
1шт.
308873A1R
REMAN-HYD PUMP
C50, C60
1шт.
308873A1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
1
84573150R
REMAN-HYD PUMP
C50, C60, Both CASE DIESEL STRADDLE TRACTOR, Reman for New PN 308873A1
1шт.
1
84573150C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
69352C1
SEAL
1шт.
3
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
1шт.
1502030C1
SEAL KIT
Includes 5 - 7
1шт.
5
NSS
NOT SOLD SEPARAT
Seal
1шт.
6
NSS
NOT SOLD SEPARAT
Ring
2шт.
7
NSS
NOT SOLD SEPARAT
Ring
2шт.
8
413-548
BOLT,Hex, 5/16" - 18 x 3", Gr 5
4шт.
9
382331R1
SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk
4шт.
10
59369C1
GEAR
540/1000rpm/23T, Trans No. - JKA0411115
1шт.
10
244754A1
PINION
540/750rpm/19T, Trans No. - JKA0411115
1шт.
10
307834A1
PINION
540/1000rpm/23T, Trans No. JKA0411116 -
1шт.
10
307837A1
PINION
750rpm/19T, Trans No. JKA0411116 -
1шт.
11
131-58
LOCK NUT,1/2"-20, G5
1/2
1шт.
12
238-5121
O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro
2шт.
13
238-6115
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
2шт.
14
59370C1
LARGE PLATE
PLATE, LARGE , 5.37 mm, Trans No. - JKA0411115
1шт.
14
308994A1
LARGE PLATE
PLATE, LARGE , 4.8 mm, Trans No. JKA0411116 -
1шт.
15
401736R4
GASKET
1шт.
16
238-5222
O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro
1шт.
17
253546A2
LARGE PLATE
PLATE, LARGE
1шт.
18
1970904C1
RING,19.51mm ID x 24.84mm OD x 3.54mm Thk
1шт.
19
253547A1
GASKET
Used With 253545A3
1шт.
20
253545A3
VALVE
See Page(s) 8-11
1шт.
21
92-11038
LOCK WASHER,3/8"
1шт.
22
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
10шт.
23
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Includes 24
1шт.
24
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
25
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
Incl. 26
1шт.
26
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Выбрано товаров: 34
