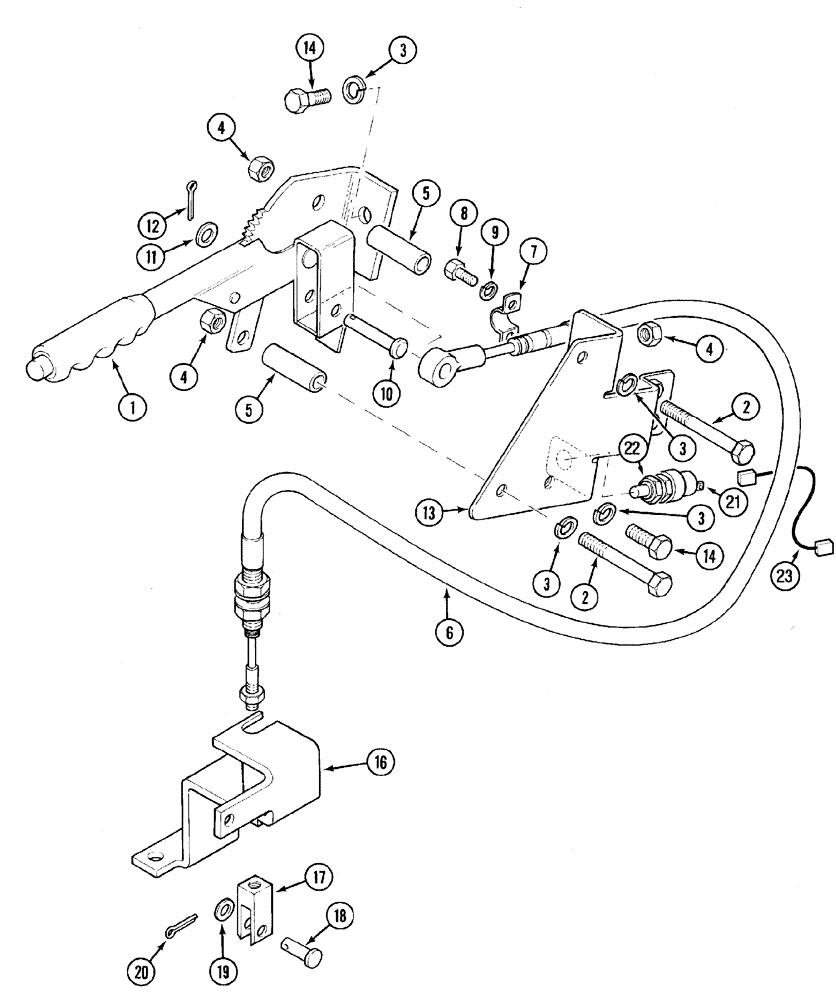

Запчасти Case IH C60 (07-06) - PARKING BRAKE, 4WD (07) - BRAKES

1

127579A1

BRAKE LEVER

Includes 364587A1

1шт.

364587A1

PACKAGE

Service Kits, Not Illustrated

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

825-1410

NUT,M10, Cl 8

3шт.

5

144517A1

SPACER

3/8 x 50 mm

2шт.

6

134780A1

CABLE

1шт.

7

1344178C1

CLAMP

1шт.

8

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

9

892-11006

LOCK WASHER,M6

2шт.

10

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

1шт.

13

136026A3

SUPPORT

Upper

1шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

135787A2

SUPPORT

Lower

1шт.

17

119382A2

YOKE

1шт.

18

728-830

CLEVIS PIN,M8 x 30

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

733-2012

COTTER PIN,M2 x 12

1шт.

21

177499A2

LIMIT SWITCH

Plunger, Includes 22

1шт.

22

188603A1

JAM NUT

M16

1шт.

23

279117A1

CABLE

1шт.
