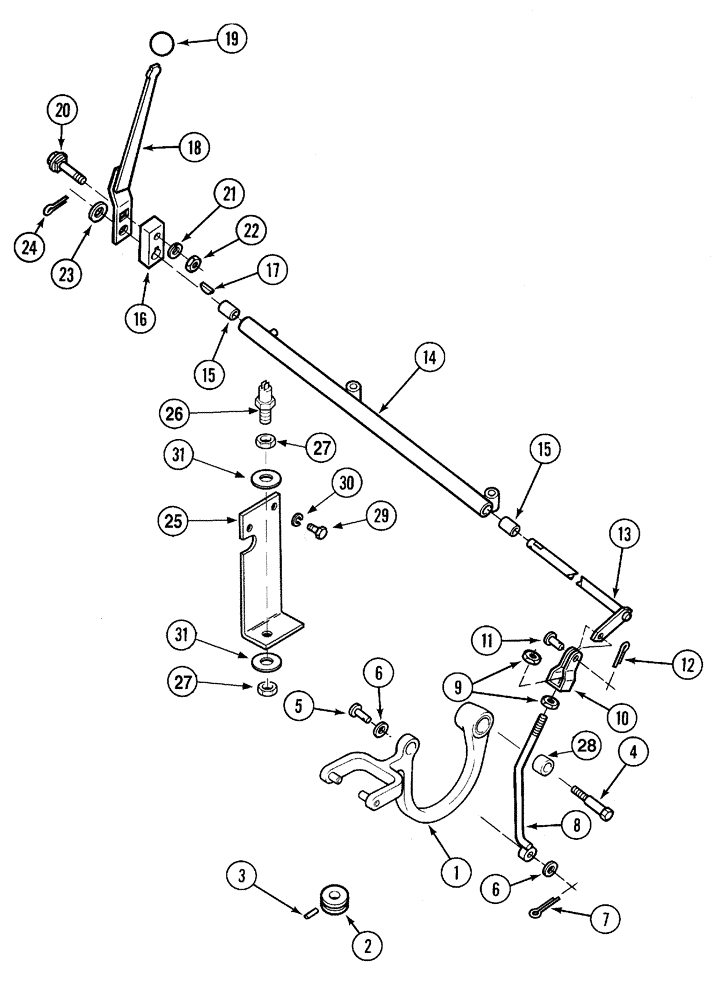

Запчасти Case IH C60 (06-40) - P.T.O. CONTROL (06) - POWER TRAIN

1

135837A1

LEVER

1шт.

2

530813R2

GUIDE BUSHING

1шт.

3

38-21214

PIN,3/16" x 7/8", Coiled

3/16" x 7/8", Coiled

1шт.

4

401754R1

BOLT,3/8" - 16 x 2.20"

1шт.

5

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

7

432-616

COTTER PIN,3/32" x 1"

1шт.

8

3129234R2

ROD ASSY.

1шт.

9

425-115

NUT,5/16"-24, G5

2шт.

10

3129237R1

CLEVIS

1шт.

11

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

1шт.

12

432-616

COTTER PIN,3/32" x 1"

1шт.

13

3129240R1

SHAFT ASSY.

1шт.

14

244101A1

SUPPORT ASSY.

Includes 15, Use With 660200R1

1шт.

15

528839R1

BUSHING

2шт.

16

538719R1

PIVOT

1шт.

17

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

18

1536837C1

LEVER ASSY.

1шт.

19

99863C1

BUTTON

1шт.

20

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4; 2

1шт.

21

492-11031

LOCK WASHER,5/16"

1шт.

22

425-105

NUT,5/16"-18, G5

1шт.

23

495-81016

WASHER,17/32" x 3/4" x .060"

17/32 x 3/4 x 1/16

1шт.

24

432-816

COTTER PIN,1/8" x 1"

1шт.

25

176469A4

SUPPORT

1шт.

26

177500A2

NEUTRAL START SWITCH

Safety Start

1шт.

27

188603A1

JAM NUT

M16

2шт.

28

135951A1

SPACER

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

2шт.
