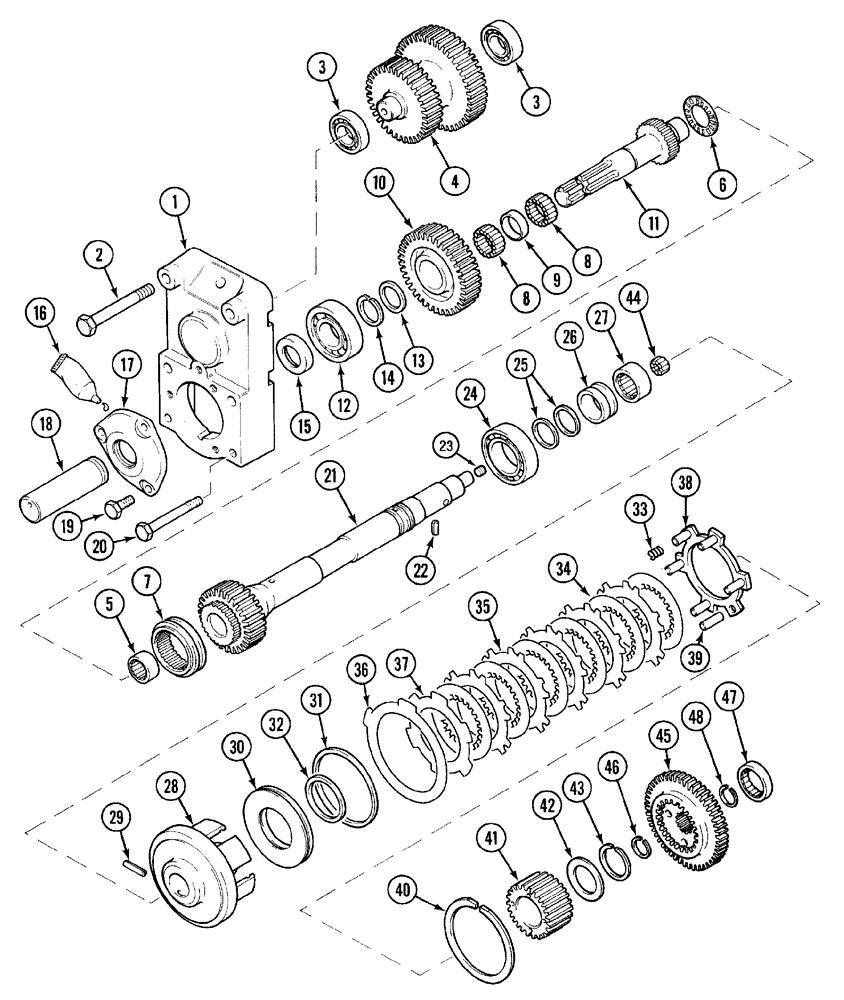

Запчасти Case IH C60 (06-36) - SHIFTABLE P.T.O. (06) - POWER TRAIN

1

111437A1

COVER

1шт.

2

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

3

116753A1

BEARING, ROLLER,29.99mm ID x 62mm OD x 16mm W

2шт.

4

123019A1

PINION

540/1000 rpm

1шт.

4

123020A1

PINION

540/750 rpm

1шт.

5

3106212R91

BEARING ASSY,1.25" ID x 1.6264" OD x 1"

1шт.

6

116755A1

THRUST BEARING,40.05mm ID x 59.86mm OD x 3mm W

1шт.

7

112684A2

SYNCHRO RING

1шт.

8

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

2шт.

9

117092A1

SPACER

1шт.

10

111989A1

PINION

34T

1шт.

11

111990A1

SHAFT

1шт.

12

132101A1

BEARING, ROLLER,40 mm ID x 90 mm OD x 23 mm

1шт.

13

1500085C1

WASHER

1шт.

14

100-16156

SNAP RING,#156, Ext

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

16

B17501

LOCTITE

6 ml

1шт.

17

182816A1

FLANGE

1шт.

18

181366A1

TUBE

1шт.

19

326-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

3шт.

20

326-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

2шт.

21

132827A2

SHAFT

540/1000 rpm. 24T, Includes 22,23

1шт.

21

132828A2

SHAFT

540/750 rpm. 29T, Includes 22,23

1шт.

22

838-5410

LOCK PIN,M4 x 10, Slotted

4 x 10 mm

1шт.

23

139312A1

PLUG,Expansion, 6mm OD

6 mm

1шт.

24

116754A1

BEARING, ROLLER,49.99mm ID x 90mm OD x 20mm W

1шт.

25

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

2шт.

26

93506C1

BUSHING

1шт.

27

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

1шт.

28

82609C2

CLUTCH HOUSING

1шт.

29

38-32032

PIN,7.92mm OD x 50.8mm L

8 x 2 mm

1шт.

30

401722R1

PISTON

1шт.

66193C91

PACKAGE

Consists Of 31 - 35

1шт.

31

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

32

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

33

66182C1

SPRING

6шт.

34

401716R3

DISC

5шт.

35

66188C1

DRIVEN PLATE

8шт.

36

82349C3

RING

1шт.

37

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

1шт.

38

66186C92

PLATE ASSY.

Includes 39

1шт.

39

38-32016

PIN,5/16" x 1", Coiled

5/16" x 1", Coiled

6шт.

40

401720R1

CIRCLIP

1шт.

41

66183C2

HUB ASSY.,45T

1шт.

42

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

43

101-11206

SNAP RING,#206, 1.936", Ext

1шт.

44

82351C91

NEEDLE BEARING

1шт.

45

114581A1

PINION

61T, Trans No. - JKA0411115

1шт.

45

307832A1

PINION

61T, Trans No. JKA0411116 -

1шт.

46

533266R1

RING, SNAP

RING SNAP , 0.98 in

1шт.

47

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

1шт.

48

101-11118

SNAP RING,#118, 1.121", Ext

1шт.
