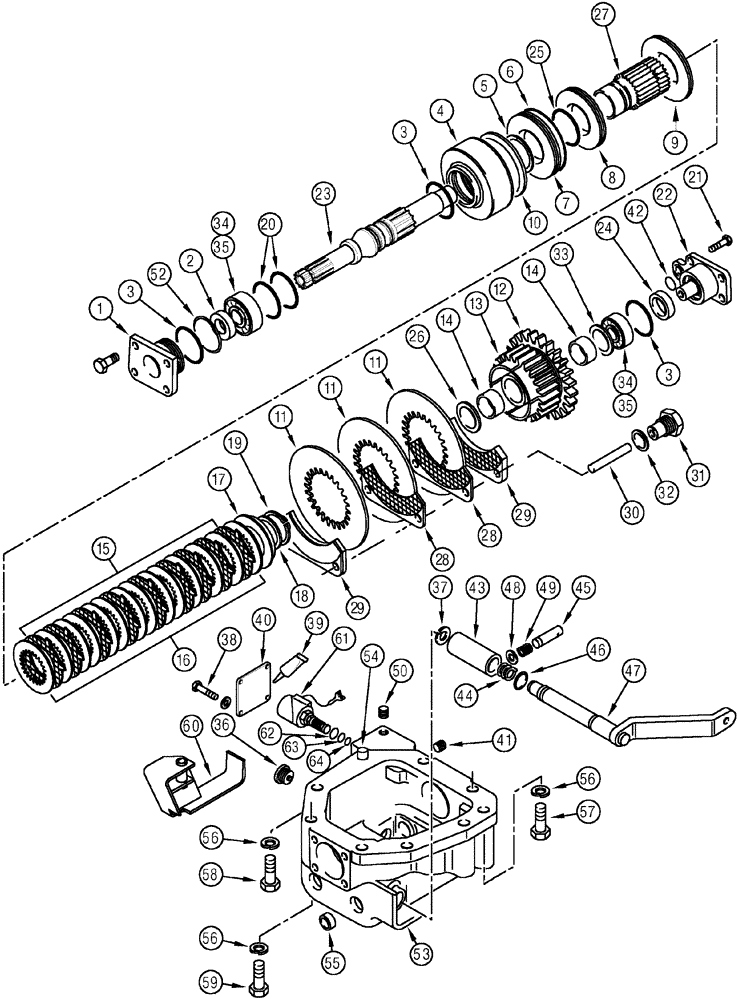

Запчасти Case IH C60 (06-34) - TRANSFER GEARBOX (06) - POWER TRAIN

116624A5

TRANSFER BOX

Consists Of 1 - 55,61 - 64

1шт.

1

100757A1

COVER

1шт.

2

100752A1

SEALING RING,32mm ID x 50mm OD x 14mm Thk

1шт.

3

100741A1

O-RING

3шт.

4

139268A1

HOUSING

1шт.

5

800-1155

RETAINER,55mm ID

2шт.

6

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

1шт.

7

239195A1

PISTON

1шт.

8

139271A1

BELLEVILLE SPRING

2шт.

9

139272A1

CLUTCH DISC

CLUTCH DISK

1шт.

10

139313A1

CIRCLIP

1шт.

11

139273A1

PLATE

3шт.

139275A1

SPROCKET ASSY.

Consists Of 12,13,14

1шт.

12

NSS

NOT SOLD SEPARAT

Gear

1шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

139279A1

BRONZE BUSHING

BRONZE BUSH

2шт.

15

139280A1

CLUTCH DISC

CLUTCH DISK

9шт.

16

139281A1

DISC

14шт.

17

139282A1

LARGE PLATE

PLATE, LARGE

1шт.

18

139283A1

SHIM

0.50 mm

1шт.

18

139284A1

SHIM

0.20 mm

1шт.

18

139285A1

SHIM,65.2mm ID x 74.8mm OD x 0.1mm Thk

0.10 mm

1шт.

18

139286A1

SHIM

2.00 mm

1шт.

19

800-1165

SNAP RING,M65, Ext

1шт.

20

238-5130

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

2шт.

21

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

8шт.

22

239198A1

COVER ASSY

1шт.

23

239199A1

DRIVE SHAFT

1шт.

24

239197A1

OIL SEAL

SEALRING

1шт.

25

238-5033

O-RING,0.07" Thk x 1.989" ID, -33, Cl 5, 75 Duro

1шт.

26

139309A1

THRUST WASHER

1шт.

27

239196A1

COUNTERSHAFT

2шт.

28

139292A1

BRAKE PAD

PAD, BRAKE , Interior

1шт.

29

139293A1

BRAKE PAD

PAD, BRAKE , External

2шт.

30

139294A1

GUIDE

2шт.

31

139295A1

PLUG

M30 - 2

2шт.

32

139310A1

SEALING WASHER

2шт.

33

139296A1

THRUST WASHER

2шт.

100742A1

BEARING ASSY

Consists Of 34,35

1шт.

34

NSS

NOT SOLD SEPARAT

Bearing, Cup

2шт.

35

NSS

NOT SOLD SEPARAT

Bearing, Cone

2шт.

36

100557A1

PLUG, DRAIN,M30 x 2

Includes 238-6121

1шт.

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

37

800-5125

CIRCLIP,M25, External

1шт.

38

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

S/N - JJE1008252

4шт.

38

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

S/N JJE1008253 -

4шт.

39

B17501

LOCTITE

6 ml

1шт.

40

100758A2

COVER

1шт.

41

139312A1

PLUG,Expansion, 6mm OD

6 mm

2шт.

42

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

43

139298A1

SHAFT

1шт.

44

139300A1

SPRING

1шт.

45

139301A1

PIN

2шт.

46

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

47

139302A1

BRAKE LEVER

1шт.

48

800-1114

SNAP RING,M14, Ext

2шт.

49

139306A1

SPRING LOCK

2шт.

50

K395020

PLUG

2шт.

52

100754A1

SHIM

0.10 mm

1шт.

52

139308A1

SHIM

0.15 mm

1шт.

52

100755A1

SHIM

0.30 mm

1шт.

52

100756A1

SHIM

0.50 mm

1шт.

53

140758A2

HOUSING ASSY.

Includes 54,55

1шт.

54

37-1816

DOWEL,1/2" x 1"

1/2 x 1

2шт.

55

641-3020

PLUG,M20, Conical

20 mm

2шт.

56

396-21053

WASHER,17/32" x 1 1/16" x .134"

9шт.

57

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2 x 3-1/4

3шт.

58

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

59

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

1/2 x 4-1/2; 8

4шт.

59

326-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1шт.

60

141894A2

GUARD

1шт.

61

139307A1

SOLENOID VALVE

Includes 62,63,64

1шт.

62

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

1шт.

63

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

64

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

9шт.
