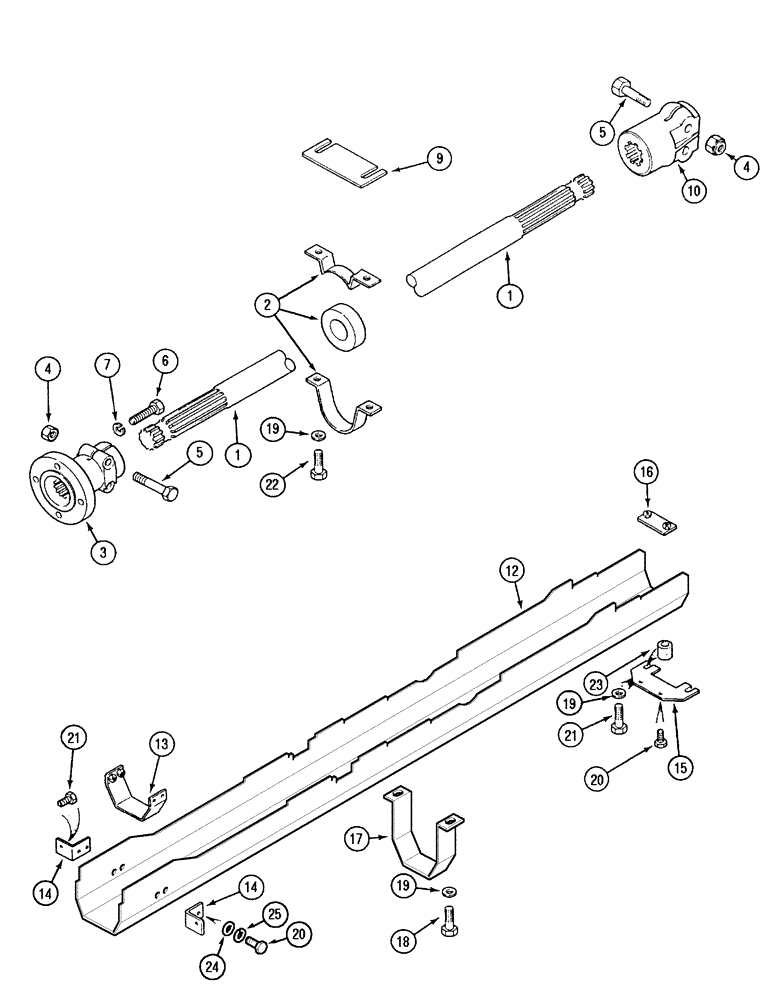

Запчасти Case IH C60 (06-33) - DRIVE SHAFT AND SHIELD (06) - POWER TRAIN

1

1537422C1

DRIVE SHAFT

1шт.

2

226878A1

BEARING ASSY,32.01mm ID

1шт.

3

1537306C2

FLANGE

UNIVERSAL JOINT YOKE

1шт.

4

K965414

NUT

4шт.

5

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

4шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

9

227795A1

SHIM

1шт.

9

227797A1

SHIM

1шт.

9

227799A1

SHIM

1шт.

10

1537839C1

SPLINED COUPLING,24T

1шт.

12

245690A3

GUARD

1шт.

13

245656A2

SUPPORT

1шт.

14

245659A1

BRACKET

2шт.

15

1536604C1

SUPPORT

1шт.

16

1536605C1

LARGE PLATE

PLATE, LARGE

1шт.

17

245660A1

SUPPORT

2шт.

18

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

22

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

23

1537849C1

SPACER

2шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

25

892-11006

LOCK WASHER,M6

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
