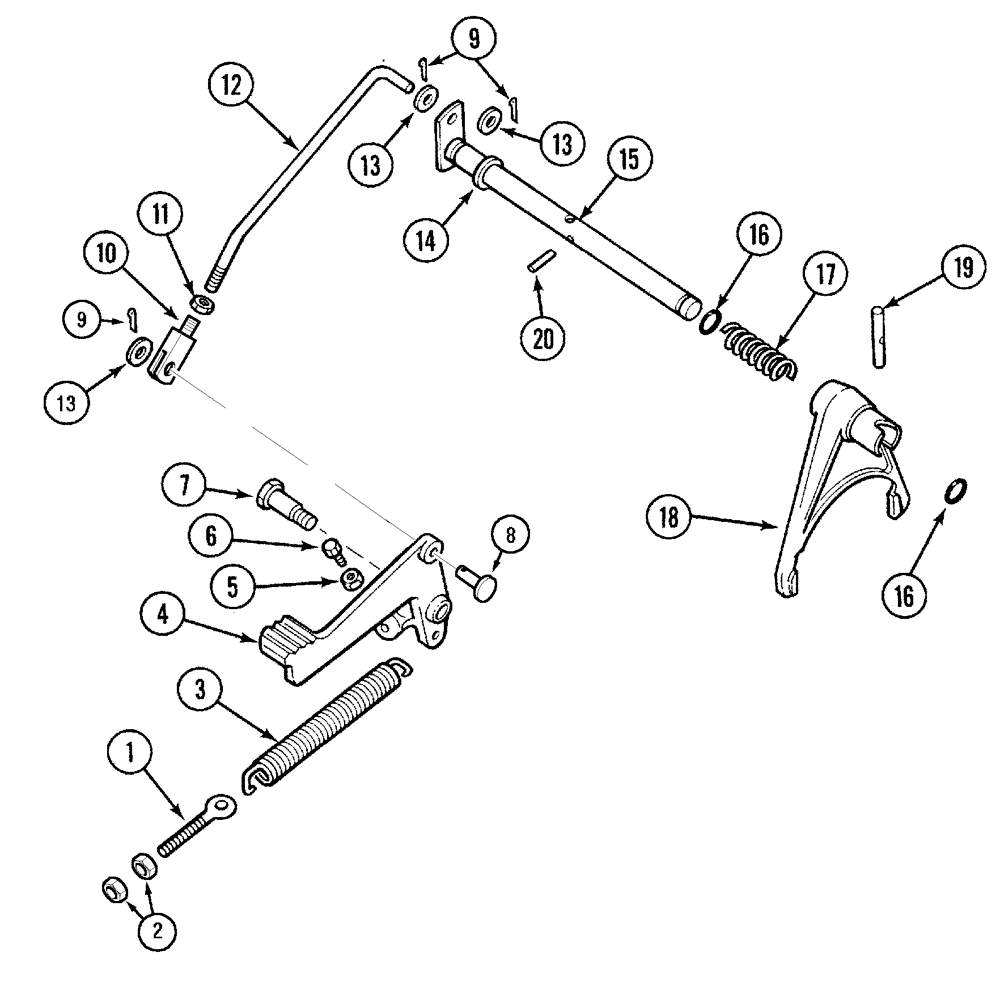

Запчасти Case IH C60 (06-32) - DIFFERENTIAL LOCK (06) - POWER TRAIN

1

1537502C1

EYEBOLT,3/8" - 16 x 152mm

BOLT, EYE

1шт.

2

425-106

NUT,3/8"-16, Cl 5

2шт.

3

3121849R2

SPRING

1шт.

4

329508A1

PEDAL

1шт.

5

425-104

NUT,1/4"-20, Cl 5

1шт.

6

1282707C1

BOLT,1/4" - 20 x 1", Full Thd

1/4 x 1

1шт.

7

527885R1

BOLT

1шт.

8

729-1030

CLEVIS PIN,M10 x 30

1шт.

9

733-3220

COTTER PIN,M3.2 x 20

3шт.

329735A1

ROD ASSY.

Consists Of 10 - 12

1шт.

10

713-2110

CLEVIS

1шт.

11

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

1шт.

12

329734A1

ROD

1шт.

14

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 x 1-1/4 x 1/16

1шт.

14

495-81020

WASHER,17/32" x 1" x .030"

17/32 x 1 x 1/32

1шт.

15

1500384C1

SHAFT ASSY.

1шт.

16

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

17

527878R1

SPRING

1шт.

18

1500386C1

FORK

1шт.

19

1500388C2

PIN

1шт.

20

38-2810

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

3шт.
