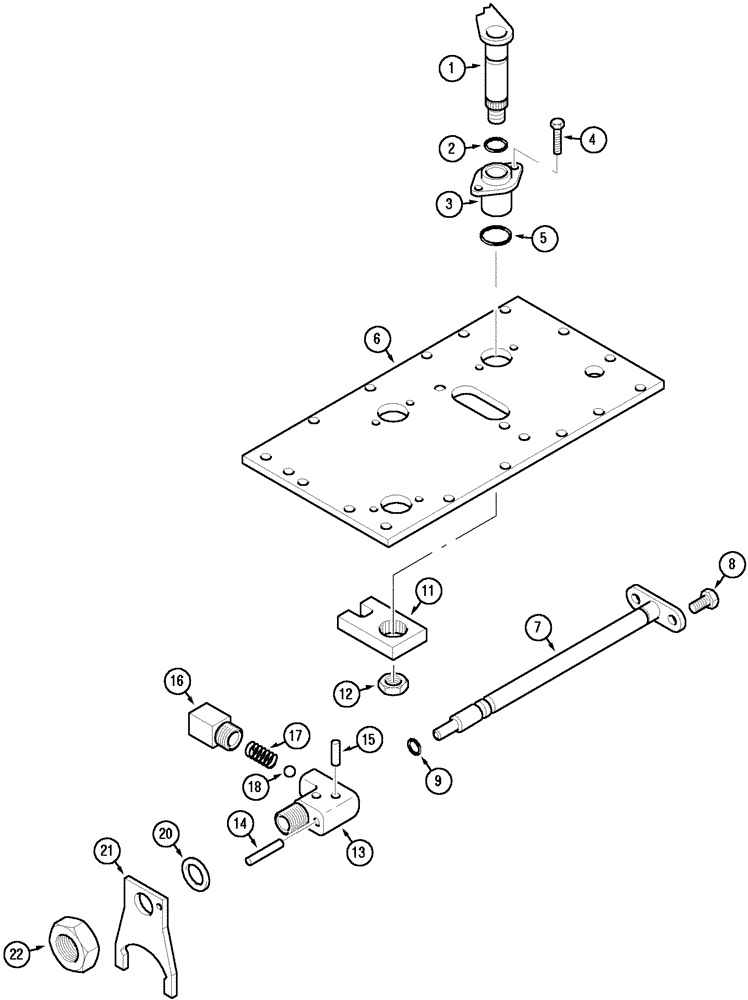

Запчасти Case IH C60 (06-30) - CREEP SPEED CONTROL INTERNAL (06) - POWER TRAIN

1

247774A1

LEVER ASSY.

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

3129165R2

HOUSING

1шт.

4

615-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

5

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

6

259396A1

COVER

1шт.

7

255805A1

RAIL ASSY.

1шт.

8

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

9

638-62160

O-RING,16mm ID x 1.8mm Width

16 ID x 1,8

1шт.

11

1343174C1

ARM

1шт.

12

832-10312

NUT,M12 x 1.75, Cl8

1шт.

13

255808A1

TRANSMISSION SLEEVE

Includes 14,15

1шт.

14

838-3520

PIN,M5 x 20, Coiled

1шт.

15

837-10030

DOWEL,M10 x 30

10 x 30 mm

1шт.

16

248401A1

RETAINER

1шт.

17

103062C1

SPRING

1шт.

18

211-1013

BALL,10.31mm OD, Gr 24

13/32; 24,CRS

1шт.

20

1343166C3

SHIM

1шт.

21

255806A1

SHIFTER FORK

1шт.

22

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.
