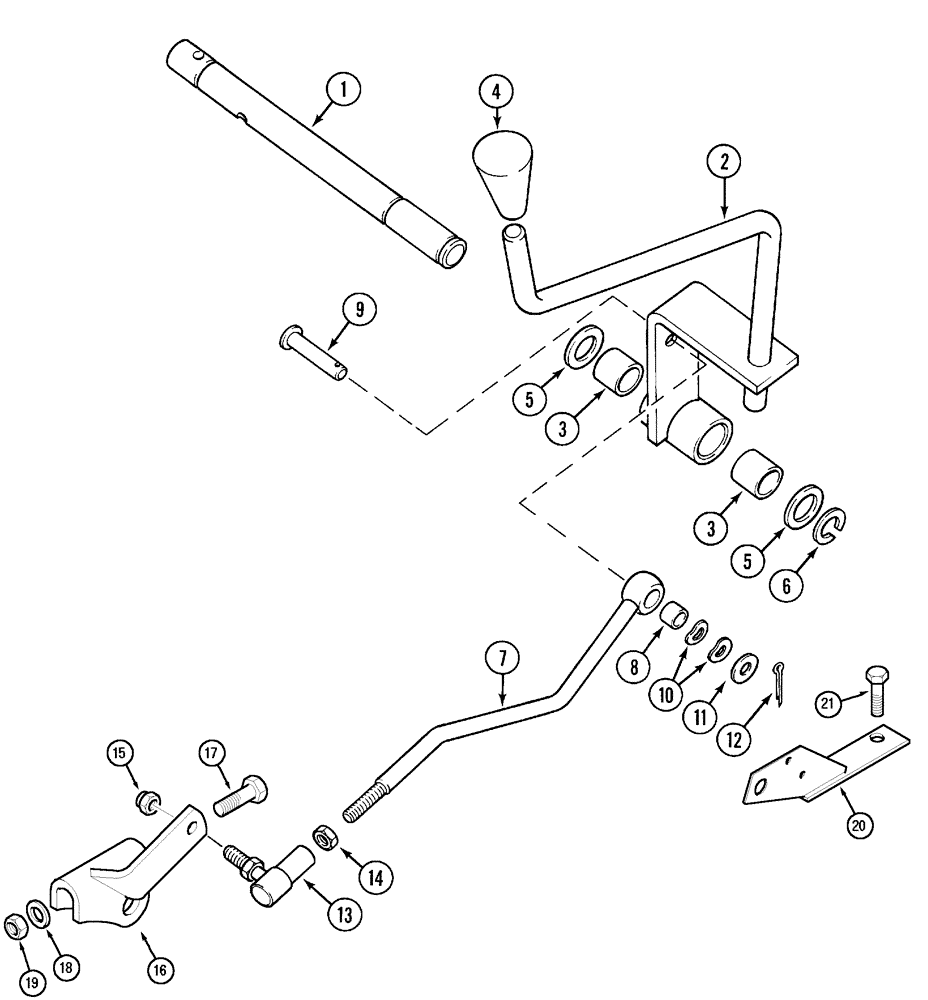

Запчасти Case IH C60 (06-25) - RANGE SHIFT CONTROLS, WITH FORWARD AND REVERSE (06) - POWER TRAIN

1

3129270R1

SHAFT

Range, See Page(s) 6-61

1шт.

2

292794A2

LEVER ASSY.

Range

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

4

1332762C1

BALL KNOB

1шт.

5

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

13/32 x 1-1/4 x 1/32

2шт.

6

100-1187

SNAP RING,#87, Ext

1шт.

7

196022A2

ROD ASSY.

Includes 8

1шт.

8

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

9

327-6121

CLEVIS PIN,9.53mm OD x 30.94mm L

3/8 x 1-7/32

1шт.

10

83723R1

WAVE WASHER

2шт.

12

32-612

COTTER PIN,3/32" x 3/4"

1шт.

13

1500497C1

BALL JOINT

1шт.

14

1500536C1

JAM NUT

7/16

1шт.

15

131-181

LOCK NUT,3/8"-24, GC

7/16

1шт.

16

179140A3

LEVER ASSY.

1шт.

17

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

18

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

19

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

20

256743A2

SUPPORT

1шт.

21

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
