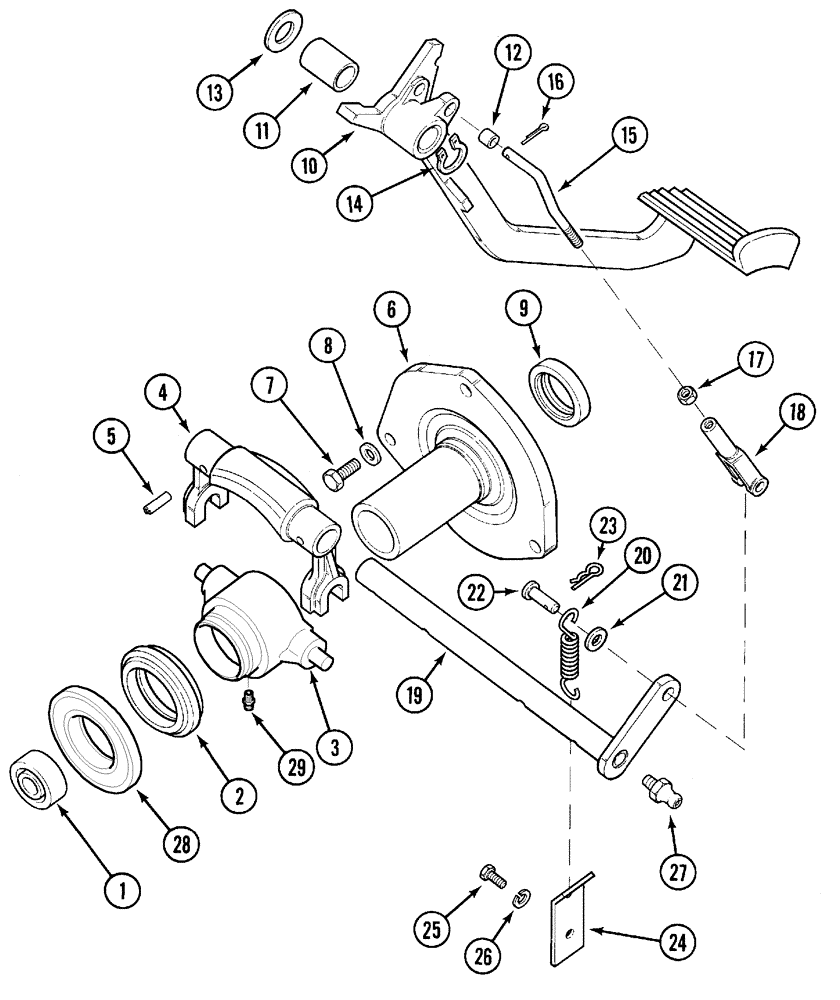

Запчасти Case IH C60 (06-22) - CLUTCH CONTROLS (06) - POWER TRAIN

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

1шт.

2

85104C92

BALL BEARING,73.1mm ID x 101.6mm OD x 21.38mm W

1шт.

3

253081A1

SLEEVE

Includes 29

1шт.

4

253079A1

CLUTCH FORK

1шт.

5

38-32022

PIN,5/16" x 1 3/8", Coiled

5/16" x 1 3/8", Coiled

2шт.

6

234517A1

SLIPPER

1шт.

7

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 x 1-3/8

3шт.

8

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

3шт.

9

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

1шт.

10

1500212C93

PEDAL ASSY.

Includes 11,12

1шт.

11

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

1шт.

12

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

1шт.

13

495-81054

WASHER,0.91" ID x 1.38" OD x 0.06" Thk

29/32 x 1-3/8 x 1/16

1шт.

14

100-1187

SNAP RING,#87, Ext

1шт.

15

71086C1

ROD ASSY.

1шт.

16

32-812

COTTER PIN,1/8" x 3/4"

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

213-116

ADJUSTABLE CLEVIS,3/8" - 24

3/8

1шт.

19

1288115C3

PIN

1шт.

20

1500587C2

SPRING

1шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

22

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

3/8 x 1-11/32

1шт.

23

3114469R1

SPLIT PIN/SAFETY PIN

1шт.

24

1500594C1

PLATE

1шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

27

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1/4 dr type x 3/4

2шт.

28

224496A1

THRUST WASHER,53.6mm ID x 100mm OD x 4.5mm Thk

1шт.

29

219-14

LUBE NIPPLE,1/4" NPTF

1шт.
