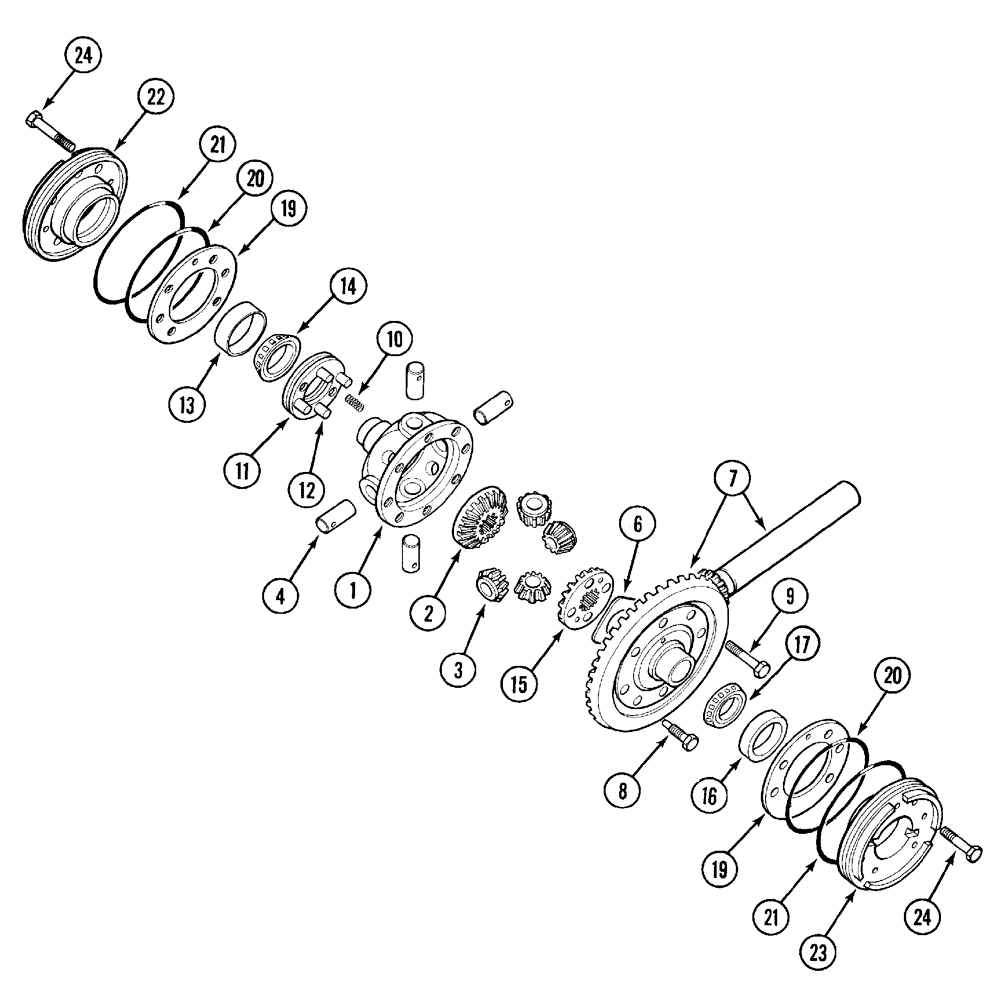

Запчасти Case IH C60 (06-20) - DIFFERENTIAL (06) - POWER TRAIN

1

399763R1

PINION CARRIER

GEAR CARRIER

1шт.

2

404336R1

PINION

20T

1шт.

3

399776R1

PINION

10T

2шт.

4

399804R1

PIN

1шт.

6

399778R1

THRUST WASHER

1шт.

7

116638A3

GEAR, BEVEL

BEVEL GEAR , 11/52T

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

1/2 x 2-1/8

4шт.

9

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

10

400867R1

SPRING

2шт.

11

399764R11

LOCKING RING

Includes 12

1шт.

12

399765R1

PIN

4шт.

13

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

14

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

Right

1шт.

15

3129493R1

PINION

20T

1шт.

16

105496H

BEARING CUP,97.63mm OD x 19.45mm W

1шт.

17

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

Left

1шт.

19

399771R1

SHIM

0,003 in

3шт.

19

399772R1

SHIM

0,007 in

3шт.

19

399773R1

SHIM

0,012 in

3шт.

19

399774R1

SHIM

0,030 in

3шт.

20

238-5367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

2шт.

21

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

2шт.

22

399770R2

BEARING CARRIER

Right

1шт.

23

399769R2

BEARING CARRIER

Left

1шт.

24

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.
