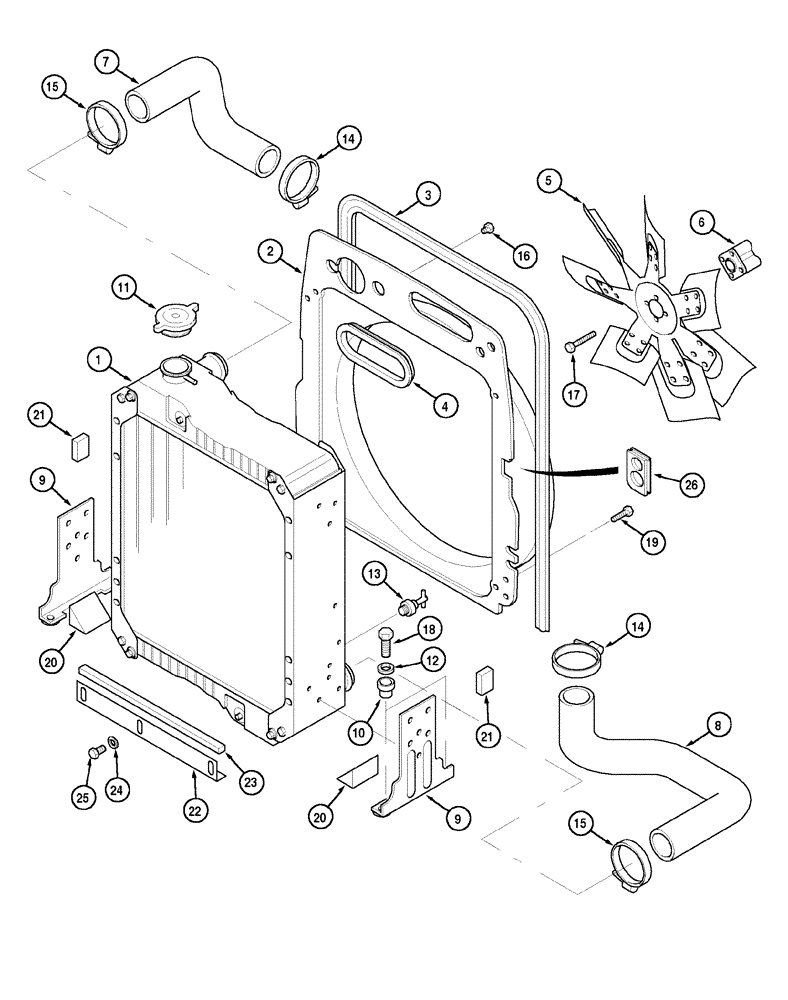

Запчасти Case IH C60 (02-02) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

222890A5

RADIATOR

1шт.

2

233071A7

GUARD

1шт.

3

229041A5

SEAL

1720 mm

1шт.

4

246478A4

SEAL

1шт.

5

249461A1

FAN

1шт.

6

255227A1

SPACER

1шт.

7

234493A4

RADIATOR HOSE,37.60 mm ID, 56.30 mm ID x 198.00 mm , SAE 20R4 or SAE J20R4

Upper

1шт.

8

225109A6

RADIATOR HOSE,32.03 mm ID x 250.00 mm, SAE J20R4, Class DI OR SAE J20R4, Class E

Lower

1шт.

9

236119A3

SUPPORT

2шт.

10

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

4шт.

11

A170241

RADIATOR CAP

15 psi

1шт.

12

234122A1

WASHER

4шт.

13

217-103

COCK, DRAIN

1/4" PT

1шт.

14

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

15

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

2шт.

16

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

17

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

M8 x 60; 8,8

4шт.

18

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

4шт.

19

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

10шт.

20

231504A1

SEAL

100 mm

2шт.

21

235898A1

SEAL

100 x 55 mm

2шт.

22

245392A4

LARGE PLATE

PLATE, LARGE , 488 mm, 4WD

1шт.

22

259253A2

LARGE PLATE

PLATE, LARGE , 374 mm, 2WD

1шт.

23

252823A3

SEAL

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

25

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

3шт.

26

243455A2

SEAL

1шт.
