Запчасти Case IH C50 (06-13) - REAR FRAME OIL LEVEL GAUGE (06) - POWER TRAIN

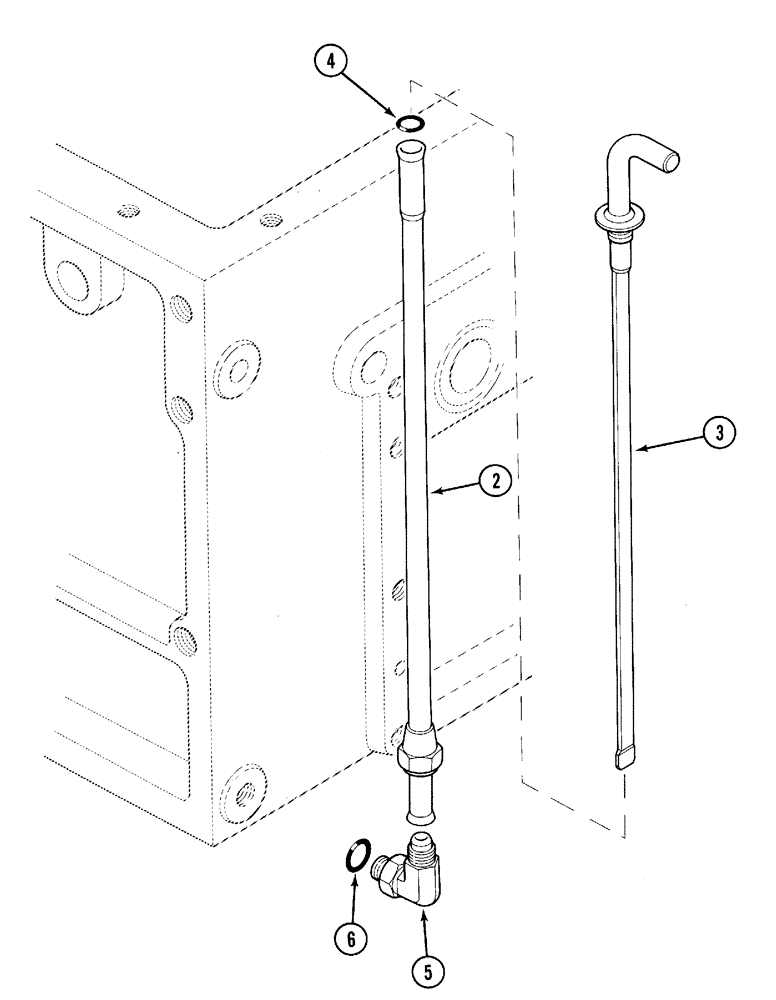

Схема запчастей Case IH C50 - (06-13) - REAR FRAME OIL LEVEL GAUGE (06) - POWER TRAIN
6
2
4
3
5

Артикул

Название

Примечание

Количество

2

528059R1

TUBE

1шт.

3

528054R5

DIPSTICK

Includes 4

1шт.

4

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
