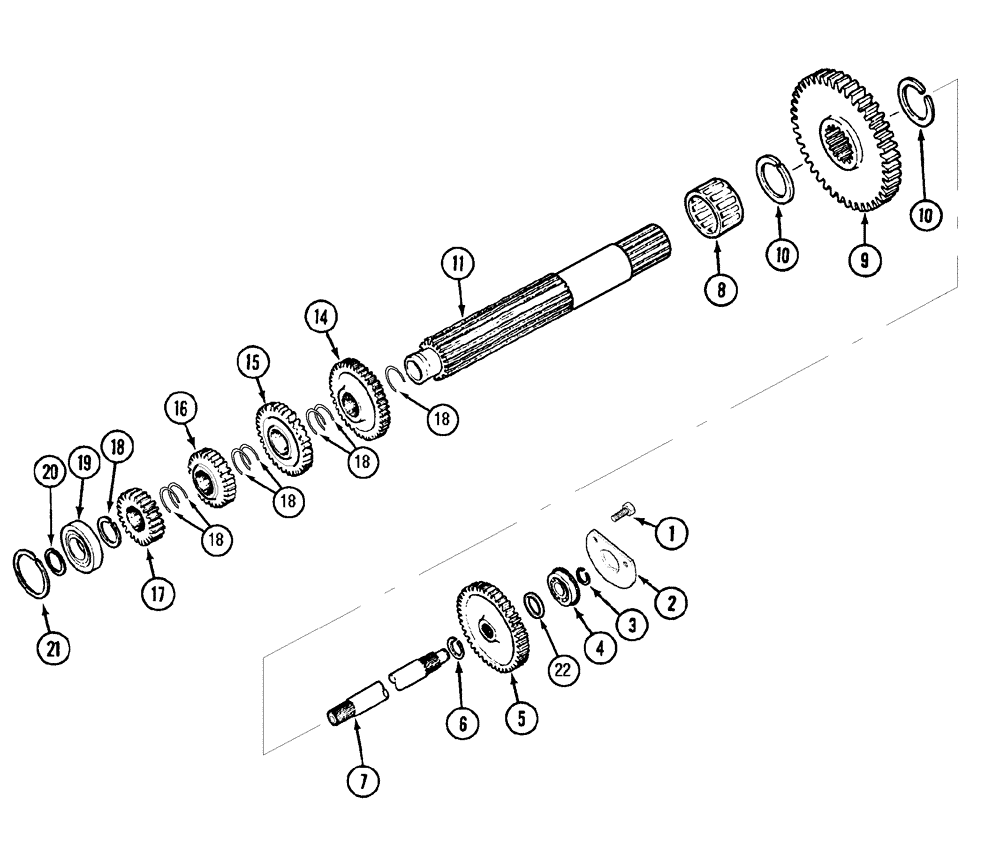

Запчасти Case IH C50 (06-07) - SPEED TRANSMISSION TWO SPEED POWER SHIFT (06) - POWER TRAIN

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

2

143944A1

FLANGE

1шт.

3

800-1120

SNAP RING,M20, Ext

1шт.

4

135990A1

BEARING, BALL,19.99mm ID x 71.99mm OD x 18.94mm W

1шт.

5

241695A2

PINION

750rpm/59T

1шт.

5

241693A1

PINION

1000rpm/50T

1шт.

6

101-11118

SNAP RING,#118, 1.121", Ext

1шт.

7

135986A2

SHAFT

1шт.

8

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

1шт.

9

292663A1

PINION

42T

1шт.

10

101-11187

SNAP RING,#187, 1.759", Ext

2шт.

11

258454A1

SHAFT

1шт.

14

258449A1

PINION

39T, Drive

1шт.

15

258451A1

PINION

43T, Drive

1шт.

16

258447A1

PINION

34T, Drive

1шт.

17

258445A1

PINION

26T, Drive

1шт.

18

258444A1

SNAP RING

8шт.

19

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

20

101-11177

SNAP RING,#177, 1.657", Ext

1шт.

21

574964R1

RING, SNAP

RING SNAP

1шт.

22

244076A1

SPACER

1шт.
