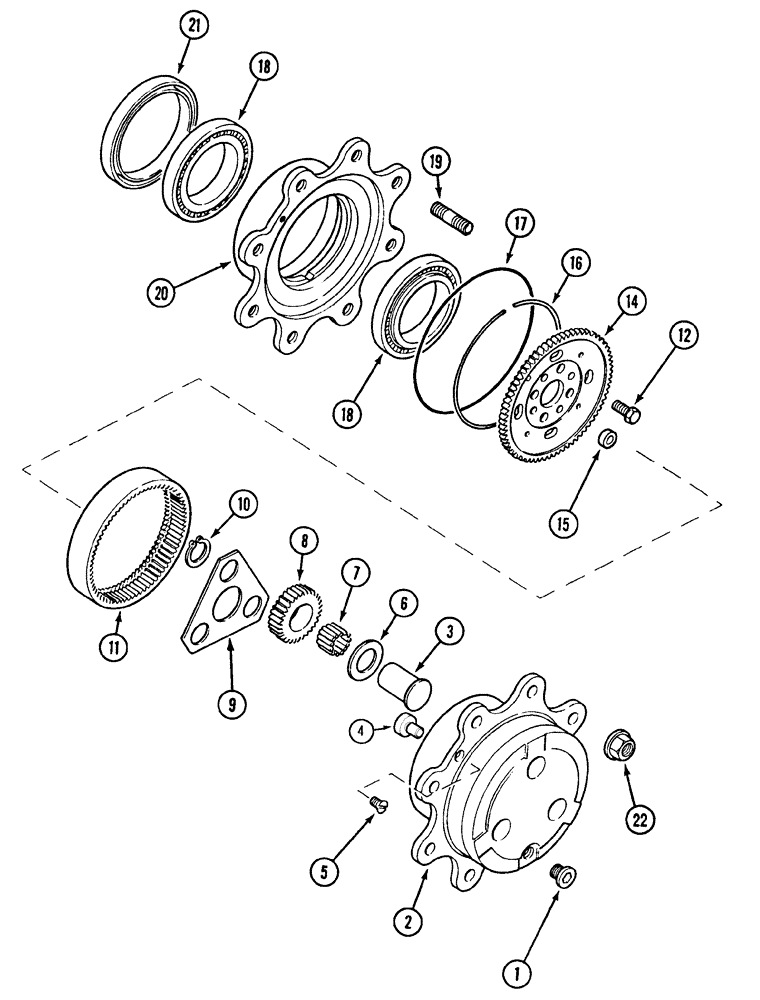

Запчасти Case IH C50 (05-16) - FRONT AXLE PLANETARIES AND HUB (05) - STEERING

1

100557A1

PLUG, DRAIN,M30 x 2

2шт.

100553A1

HOUSING ASSY.

Planetary, Consists Of 2,3,4

2шт.

2

NSS

NOT SOLD SEPARAT

Carrier

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft

3шт.

4

K395093

HEADED PIN,12mm OD x 15mm L

1шт.

5

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

4шт.

6

K395091

THRUST WASHER

6шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Needle, Order 114295A1

180шт.

114295A1

10 NEEDLE BRG KIT

Set Of 10

1шт.

8

100562A1

GEAR, PLANETARY

GEAR, PLANET

6шт.

9

100555A1

LARGE PLATE

PLATE, LARGE

2шт.

10

800-1134

SNAP RING,M34, Ext

6шт.

11

100561A1

GEAR

2шт.

12

116425A1

BOLT

M10 x 45

12шт.

14

100564A1

PINION

2шт.

15

116426A1

BUSHING

12шт.

16

100559A1

SPECIAL RING

2шт.

17

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

18

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

4шт.

19

100556A1

STUD

16шт.

20

100558A1

HUB

2шт.

21

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

2шт.

22

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

M18

16шт.
