Запчасти Case IH C50 (05-07) - ADJUSTABLE FRONT AXLE - STRAIGHT, 52 TO 82 INCH TREAD WIDTHS (05) - STEERING

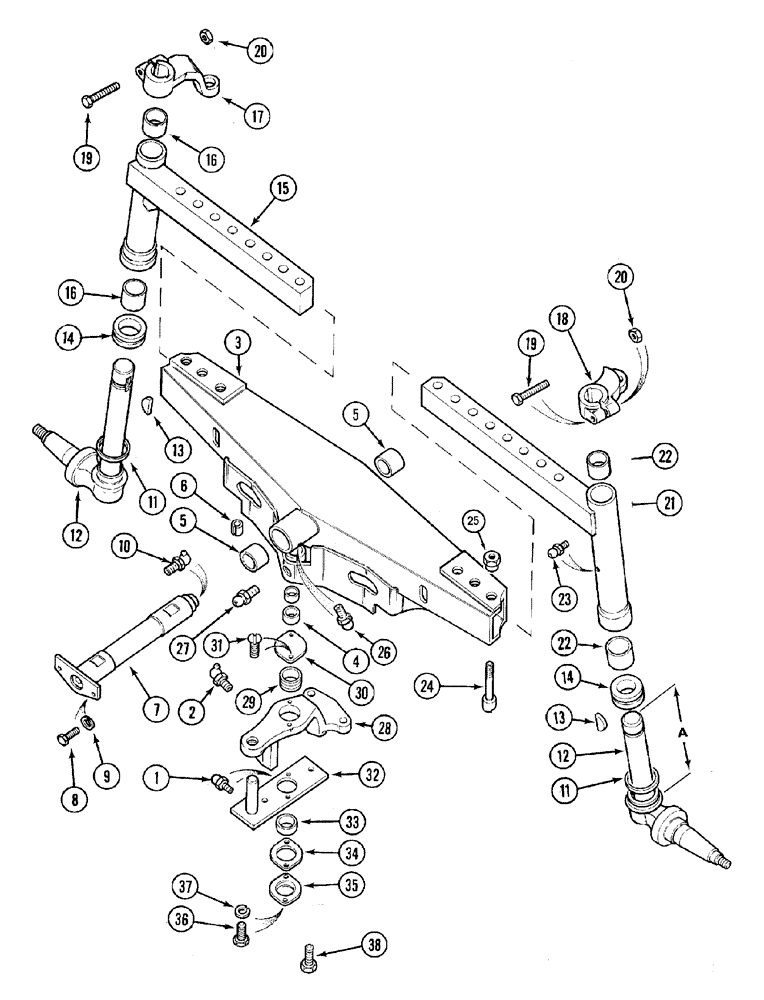

Схема запчастей Case IH C50 - (05-07) - ADJUSTABLE FRONT AXLE - STRAIGHT, 52 TO 82 INCH TREAD WIDTHS (05) - STEERING
5
31
28
14
26
16
12
8
23
20
13
25
1
7
18
5
22
17
38
33
19
35
16
15
21
37
36
20
19
13
24
11
2
3
27
9
11
6
12
10
32
30
14
4
22
34

Артикул

Название

Примечание

Количество

1

219-13

LUBE NIPPLE,3/16" NPTF

19/32 in

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

3116435R93

AXLE, FRONT

Includes 4,5,6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

2шт.

6

103925A1

BUSHING,20mm ID x 26.06mm OD x 25mm L

1шт.

7

539128R1

SHAFT ASSY.

1шт.

7

99897C1

SHAFT

With Front Hydraulic Pump

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

9

892-11012

LOCK WASHER,M12

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8 in

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

2шт.

12

67535C91

KNUCKLE

ASSY. , A : 309 mm, Includes 13

2шт.

12

3125872R91

STEERING KNUCKLE

A : 244 mm, Includes 13

2шт.

12

67526C91

KNUCKLE

ASSY. , A : 389 mm, Includes 13

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

14

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

2шт.

15

3116437R91

EXTENSION ASSY.

Front, Right, Includes 16, Use With 67526C91

1шт.

15

3116580R91

EXTENSION ASSY.

Front, Right, Includes 16, Use With 67535C91

1шт.

15

3116476R91

EXTENSION ASSY.

Front, Right, Includes 16, Use With 3125872R91

1шт.

16

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

2шт.

17

67525C1

ARM

Right

1шт.

18

67524C1

ARM

Left

1шт.

19

13-850

BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

2шт.

21

3116436R91

EXTENSION ASSY.

Front, Left, Includes 22, Use With 67526C91

1шт.

21

3116475R91

EXTENSION ASSY.

Front, Left, Includes 22, Use With 3125872R91

1шт.

21

3116579R91

EXTENSION ASSY.

Front, Left, Includes 22, Use With 67535C91

1шт.

22

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

2шт.

23

219-98

LUBE NIPPLE,1/4" NPTF

1/4 in

1шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

6шт.

25

405576R1

NUT

6шт.

26

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

27

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

1/4 in

1шт.

28

67499C94

STEERING ARM

Consists Of 29,30,31

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

1шт.

30

1536890C1

LARGE PLATE

PLATE, LARGE

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

Consists Of 29,30,31

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

1шт.

34

1536919C1

GASKET

1шт.

35

1536892C1

LARGE PLATE

PLATE, LARGE

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

1/4 x 5/8

2шт.

37

492-11025

LOCK WASHER,1/4"

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

Выбрано товаров: 45
