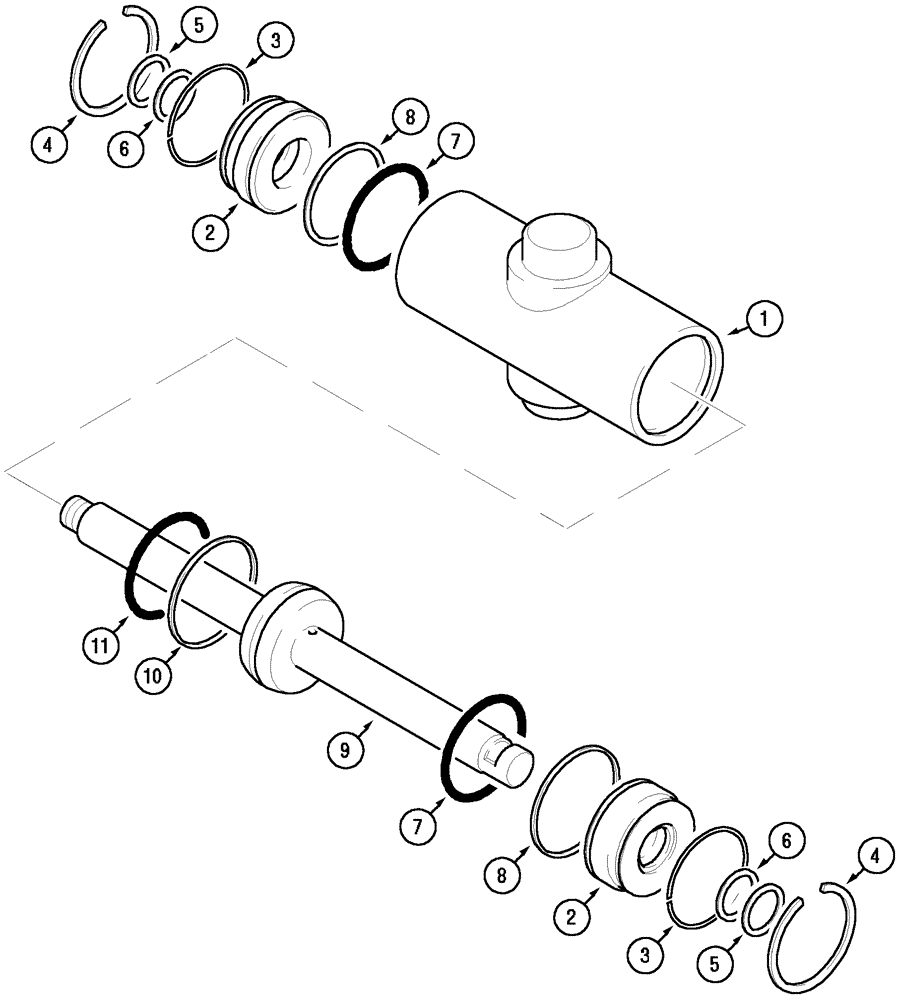

Запчасти Case IH C50 (05-03) - POWER STEERING CYLINDER, 2WD (05) - STEERING

188842A1

STEERING CYLINDER

Consists Of 1 - 11

1шт.

84336125R

REMAN-HYD CYLINDER

C50, C60, Reman for New P/N 188842A1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

188843A1

HYD CYL SLEEVE

1шт.

2

188844A1

RING

1шт.

3

188852A1

RING

2шт.

4

188853A1

CIRCLIP

2шт.

188855A1

GASKET KIT

Consists Of 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

Wiper

2шт.

6

NSS

NOT SOLD SEPARAT

Seal

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

188854A1

ROD ASSY.

Consists Of 9,10,11

1шт.

9

NSS

NOT SOLD SEPARAT

Rod

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.
