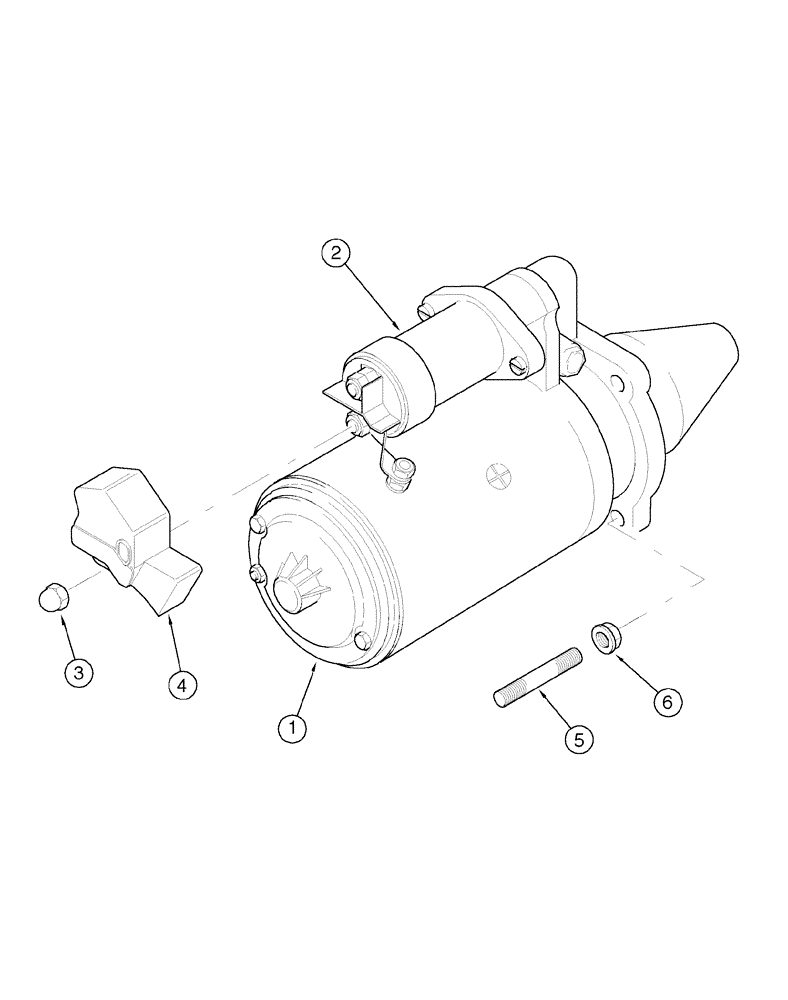

Запчасти Case IH C50 (04-15) - STARTER MOTOR, ISKRA (04) - ELECTRICAL SYSTEMS

1

388186A1

STARTING MOTOR

Iskra 3,0 kw

1шт.

6106496M91

STARTING MOTOR

STARTING MOTOR, 12v 3.0 kw

1шт.

6106496M91R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR - for N.A. Only

1шт.

6106496M91C

CORE-STARTER

Return Number, STARTING MOTOR - for N.A. Only

1шт.

2

395366A1

SOLENOID

1шт.

3

395378A1

NUT

1шт.

4

395377A1

COVER

1шт.

5

217984A1

STUD

3шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

The Following Parts Are Not Illustrated

1шт.

395364A1

SUPPORT

1шт.

395365A1

COVER

1шт.

395367A1

LEVER

1шт.

395368A1

KIT

1шт.

395369A1

ARMATURE

1шт.

395370A1

BRUSH HOLDER

HOLDER, BRUSH

1шт.

395371A1

BRUSH ASSY.

1шт.

395372A1

KIT

1шт.

395373A1

STATOR

1шт.

395374A1

DRIVE ASSY.

1шт.

395375A1

COVER

1шт.

395376A1

PACKAGE, REPAIR

1шт.
