Запчасти Case IH C50 (04-10) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

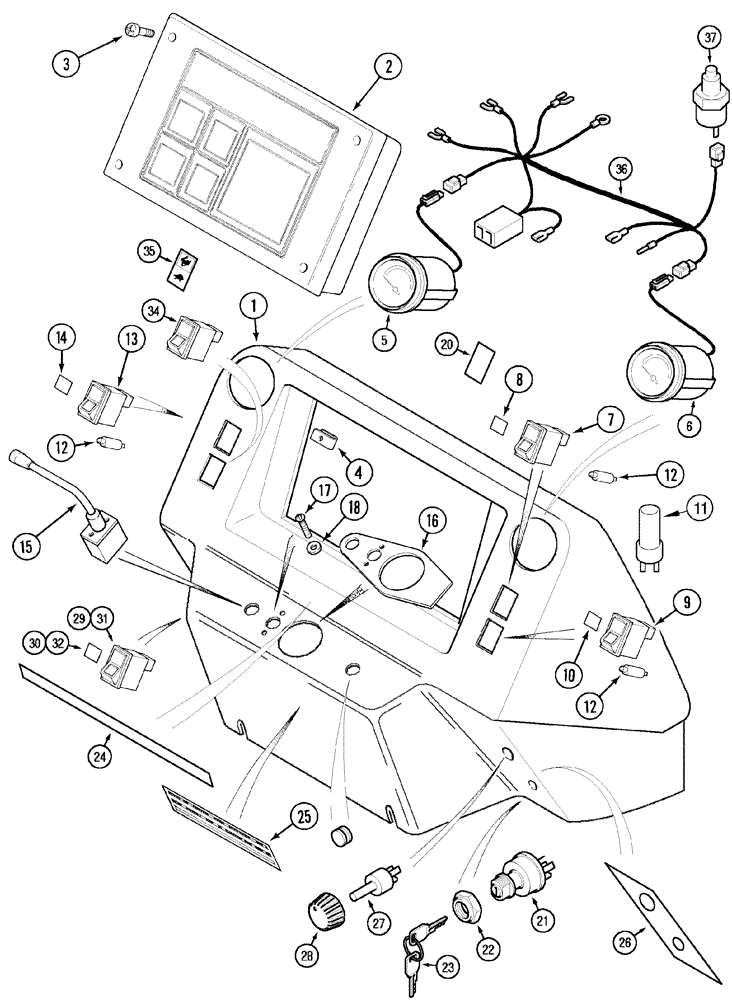

Схема запчастей Case IH C50 - (04-10) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS
1
34
32
28
6
35
24
7
10
11
37
20
21
17
23
22
12
30
25
9
2
12
12
8
5
14
27
15
36
26
18
31
29
4
13
3
16

Артикул

Название

Примечание

Количество

1

232672A3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT , Not Illustrated, See Page(s) 9-19

1шт.

1

294779A1

HOUSING

N.A. Only, See Page(s) 9-19

1шт.

2

REF

INSTRUCTION

Cluster, See Page(s) 4-29

1шт.

3

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

4

140714A1

SPRING NUT

4шт.

5

284799A1

GAUGE

Voltmeter, N.A. Only

1шт.

6

284800A1

GAUGE

N.A. Only

1шт.

7

245908C1

FLASHER SWITCH

Hazard, Includes 8,12

1шт.

8

1983283C1

SYMBOLS

SYMBOL

1шт.

9

245909C1

SWITCH ASSY

Worklight, Includes 10,12

1шт.

10

228326A1

SYMBOLS

SYMBOL

1шт.

11

134608A1

LAMP SOCKET

Includes 12

1шт.

12

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

13

190524A1

SWITCH

4WD, Includes 12,14

1шт.

14

1964651C1

SYMBOLS

SYMBOL

1шт.

15

1537080C1

SWITCH ASSY

Combination

1шт.

16

1536731C1

PLATE

1шт.

17

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

18

892-11004

LOCK WASHER,M4

2шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

5/8

1шт.

20

245918C1

LENS

Blanking rocker switch

1шт.

21

282775A1

IGNITION SWITCH

Includes 22,23

1шт.

22

NSS

NOT SOLD SEPARAT

Nut

1шт.

23

1964831C2

IGNITION KEY

Padded

1шт.

21

307871A1

CONNECTION,ELECTRIC

Includes 22,23

1шт.

22

NSS

NOT SOLD SEPARAT

Nut

1шт.

23

307852A1

SET OF 2 KEYS

Metal Without Padding

1шт.

24

141706A1

DECAL

English, Warning

1шт.

25

1985279C2

DECAL

English, Warning, Creep Speed

1шт.

26

298173A1

DECAL

3 Position, Europe Only

1шт.

26

298172A1

DECAL

4 Position, N.A. Only

1шт.

27

197168A1

SWITCH

3 Position, Europe Only

1шт.

27

177249A1

ASSEMBLY

4 Position, N.A. Only

1шт.

28

234994A1

BUTTON

1шт.

194110A1

SWITCH

Ether Start, N.A. Only, Includes 29,30

1шт.

29

3231782R1

SWITCH

1шт.

30

1983275C1

SYMBOLS

SYMBOL

1шт.

194111A1

SWITCH ASSY

Thermostart, Europe Only, Includes 29,30

1шт.

31

3231782R1

SWITCH

1шт.

32

183042A1

SYMBOLS

SYMBOL

1шт.

33

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1-1/32 x 1-1/2 x 7/64

1шт.

34

233167A1

SWITCH ASSY

Two Speed Power Shift, Includes 35

1шт.

35

233168A1

DECAL

SYMBOL , Two Speed Power Shift

1шт.

36

291811A1

HARNESS

Auxiliary, N.A. Only

1шт.

37

311006A1

SENDER UNIT

Oil Pressure And Voltmeter, N.A. Only

1шт.

Выбрано товаров: 45
