(04-08) - REAR LIGHTS, EUROPE ONLY, WITH FLAT TOP FENDERS

Запчасти Case IH C50 (04-08) - REAR LIGHTS, EUROPE ONLY, WITH FLAT TOP FENDERS (04) - ELECTRICAL SYSTEMS

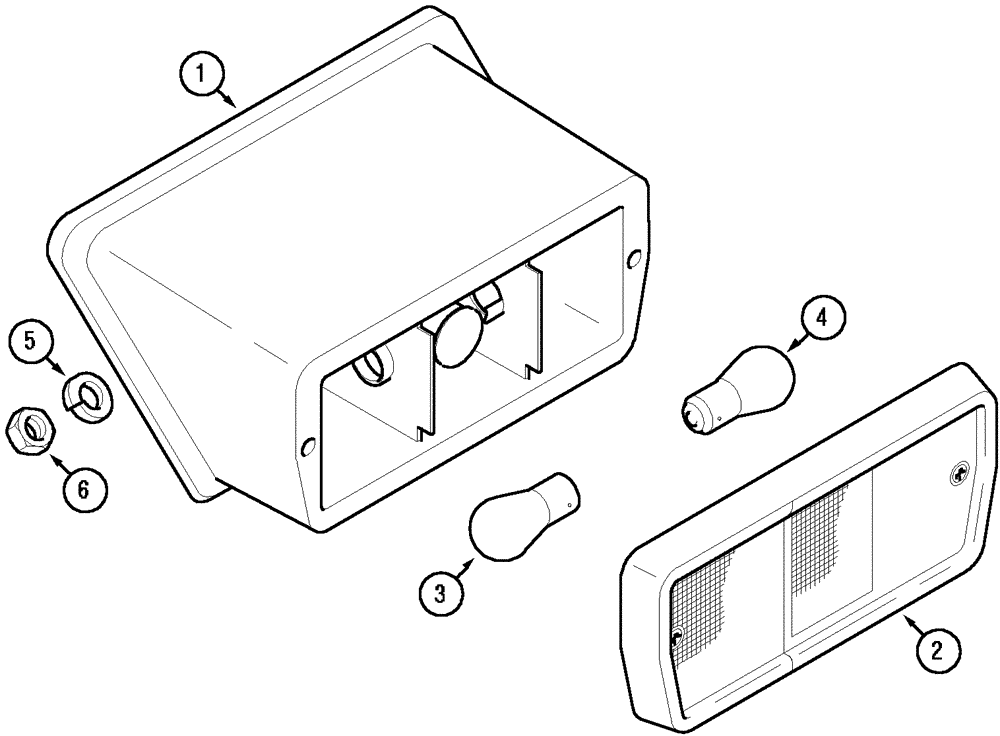

Схема запчастей Case IH C50 - (04-08) - REAR LIGHTS, EUROPE ONLY, WITH FLAT TOP FENDERS (04) - ELECTRICAL SYSTEMS
3
6
2
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

233160A2

LAMP, TAIL

LIGHT, TAIL , Right, Includes 2,3,4

1шт.

1b

233161A2

LAMP, TAIL

LIGHT, TAIL , Left, Includes 2A,3,4

1шт.

2

NSS

NOT SOLD SEPARAT

Lens, Right

1шт.

2b

187140A1

LENS

Left

1шт.

3

1094366R1

BULB

12V, 21w, Indicator

1шт.

4

3131234R1

BULB,P25-2, 12V, 5W

Stop - Tail Lights

1шт.

5

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.
