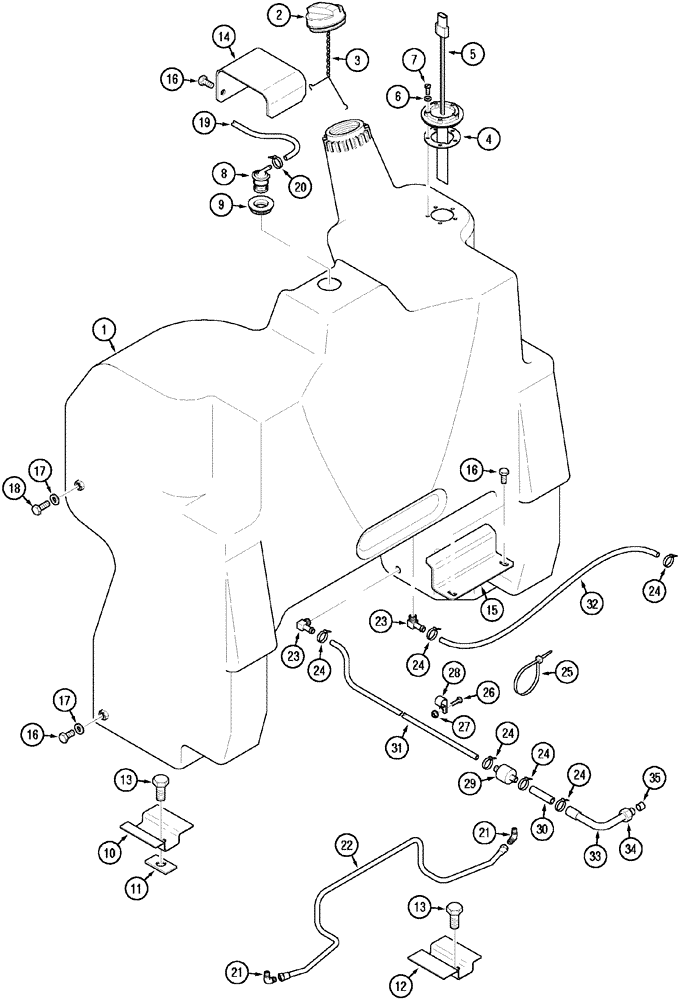

Запчасти Case IH C50 (03-09) - FUEL TANK FILLER AND SENDER (03) - FUEL SYSTEM

1

338864A5

FUEL TANK

Inc. 2, 3

1шт.

2

226384A1

PLUG

1шт.

3

278374A1

CHAIN (AG)

1шт.

4

528359R3

GASKET

1шт.

5

346013A2

SENDER UNIT

SENDER

1шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

7

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

5шт.

8

275800A1

VALVE STEM

1шт.

8

275800A1

VALVE STEM

Optional

1шт.

9

362597A1

GROMMET

1шт.

10

332791A1

SUPPORT

Left

1шт.

11

333582A1

SPACER

1шт.

12

332792A1

SUPPORT

Right

1шт.

13

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

14

332793A1

SUPPORT

Vent

1шт.

15

344853A1

SUPPORT

1шт.

16

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

344524A1

HOSE

1100 mm

1шт.

20

214-1308

HOSE CLAMP,#8, 1/2", Spring

1шт.

21

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

2шт.

22

339043A3

PIPE,0.315" OD, 670, 80 mm Length

1шт.

23

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

2шт.

24

1348264C1

HOSE CLAMP

3/8 ID

6шт.

25

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

26

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

27

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

28

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

1шт.

29

D139225

FILTER, FUEL

1шт.

30

253096A1

FUEL HOSE

50 mm, Cut From 194882A1

1шт.

31

346329A1

FUEL HOSE,2000.00 mm

Cut From 194882A1

1шт.

32

346328A1

FUEL HOSE,1700.00 mm

Cut From 194882A1

1шт.

33

276975A1

PIPE

Fuel Supply

1шт.

34

277969A1

TUBE NUT,16 mm Length

1/2 in

1шт.

35

222-653

SLEEVE,5/16" Tube, Comp

1шт.

194882A1

FUEL HOSE,0.38" ID x 25.00' Bulk, SAE 30R7

1шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
