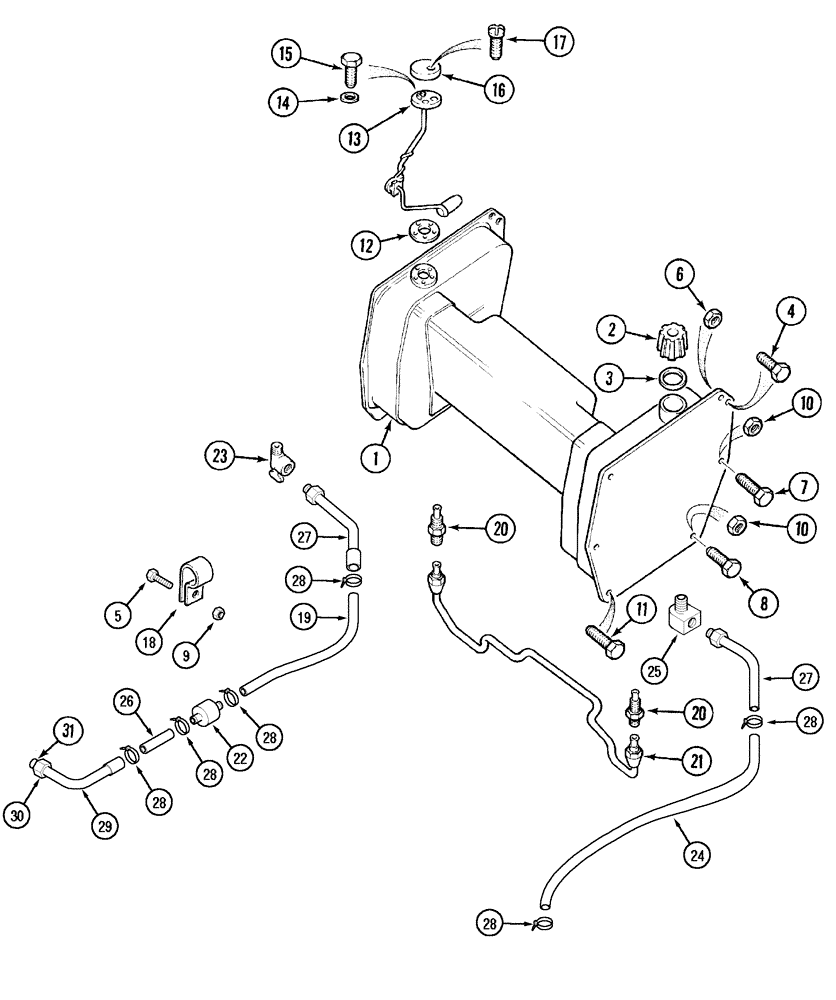

Запчасти Case IH C50 (03-08) - FUEL TANK AND PIPING (03) - FUEL SYSTEM

1

531125R4

FUEL TANK

Includes 2,3

1шт.

2

538063R1

PLUG

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

1шт.

4

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

M10 x 16; 8,8

4шт.

5

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

1шт.

6

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

9

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

10шт.

11

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

12

528359R4

GASKET,3.05mm Thk

1шт.

13

143557A1

SENDER UNIT

1шт.

14

533199R1

SEALING WASHER

1шт.

14

796002R1

COPPER WASHER

1шт.

15

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

1шт.

16

134124A1

CAP

1шт.

17

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

19

279968A2

FUEL HOSE,1600.00 mm

Cut From 194882A1

1шт.

20

1502069C1

PIPE

2шт.

21

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

1шт.

22

D139225

FILTER, FUEL

1шт.

23

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

1шт.

24

279971A2

FUEL HOSE,2100.00 mm

Cut From 194882A1

1шт.

25

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

1шт.

26

253096A1

FUEL HOSE

50 mm, Cut From 194882A1

1шт.

27

279184A1

PIPE

2шт.

28

1348264C1

HOSE CLAMP

3/8 ID

5шт.

29

276975A1

PIPE

Fuel Supply

1шт.

30

277969A1

TUBE NUT,16 mm Length

1/2 in

1шт.

31

222-653

SLEEVE,5/16" Tube, Comp

1шт.

194882A1

FUEL HOSE,0.38" ID x 25.00' Bulk, SAE 30R7

1шт.
