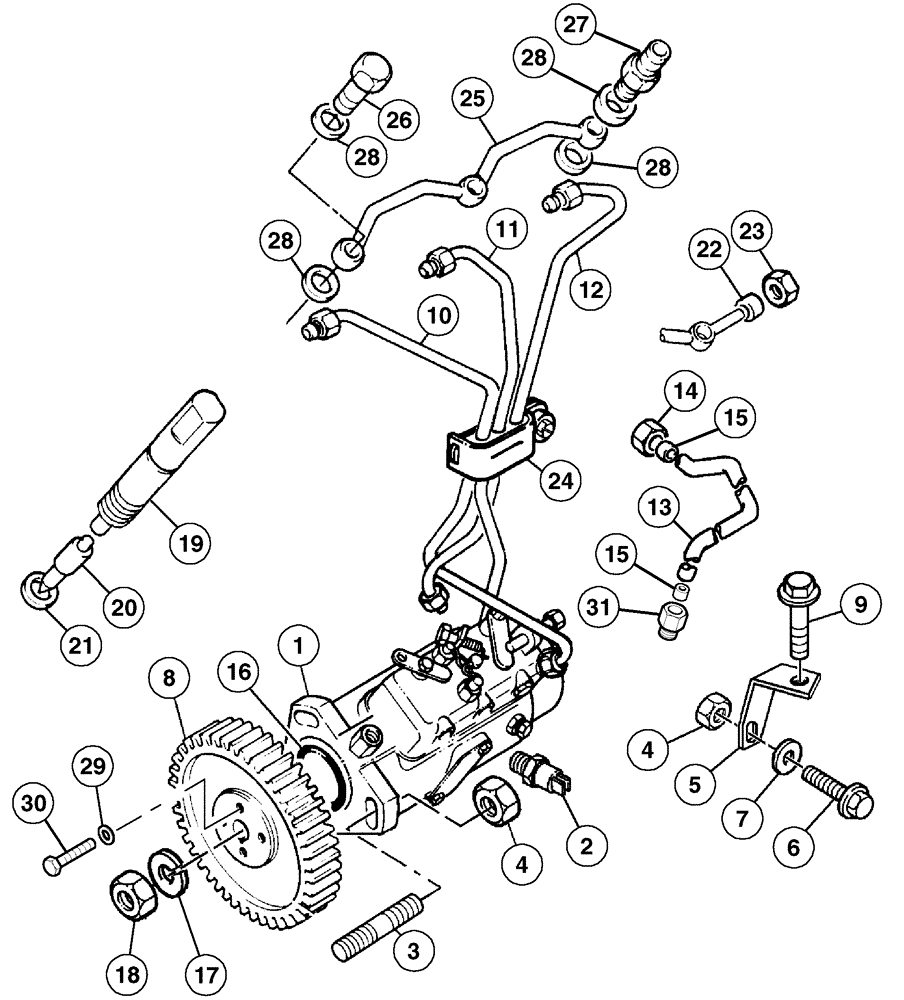

Запчасти Case IH C50 (03-04) - FUEL INJECTION SYSTEM, C50 (03) - FUEL SYSTEM

1

295511A1

PUMP, FUEL INJECTION

PUMP, INJECTION , Includes 2, Engine No. - U323860C

1шт.

1

324048A1

PUMP, FUEL INJECTION

PUMP, INJECTION , Includes 2, Engine No. U323861C -

1шт.

2

218323A1

SOLENOID

1шт.

3

218327A1

STUD

3шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

296211A1

SUPPORT

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

7

295824A1

WASHER

1шт.

8

296154A1

PINION

Engine No. - U323860C

1шт.

8

329578A1

PINION

Engine No. U323861C -

1шт.

9

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

10

296204A1

TUBE ASSY.

Cylinder 1

1шт.

11

296205A1

TUBE ASSY.

Cylinder 2

1шт.

12

296206A1

TUBE ASSY.

Cylinder 3

1шт.

296236A1

TUBE

Consists Of 13,14,15

1шт.

13

NSS

NOT SOLD SEPARAT

Pipe

1шт.

14

218343A1

TUBE NUT

1шт.

15

3107231R1

SEALING RING

SEALRING

1шт.

16

295505A1

O-RING

1шт.

17

217939A1

WASHER

1шт.

18

291978A1

NUT

1шт.

296247A1

NOZZLE INJECTION

Consists Of 19,20

3шт.

19

295513A1

SUPPORT

1шт.

20

296250A1

NOZZLE CAP

1шт.

21

217795A1

WASHER

3шт.

22

3107231R1

SEALING RING

SEALRING

1шт.

23

3107230R1

NUT

1шт.

24

296148A1

CLIP,ELECTRICAL

1шт.

25

295506A1

PIPE

1шт.

26

217964A1

BANJO BOLT

2шт.

27

295974A1

FITTING

1шт.

28

295973A1

WASHER

6шт.

29

219756A1

WASHER

Engine No. U323861C -

4шт.

30

327694A1

SCREW

Engine No. U323861C -

4шт.

31

3107230R1

NUT

1шт.
