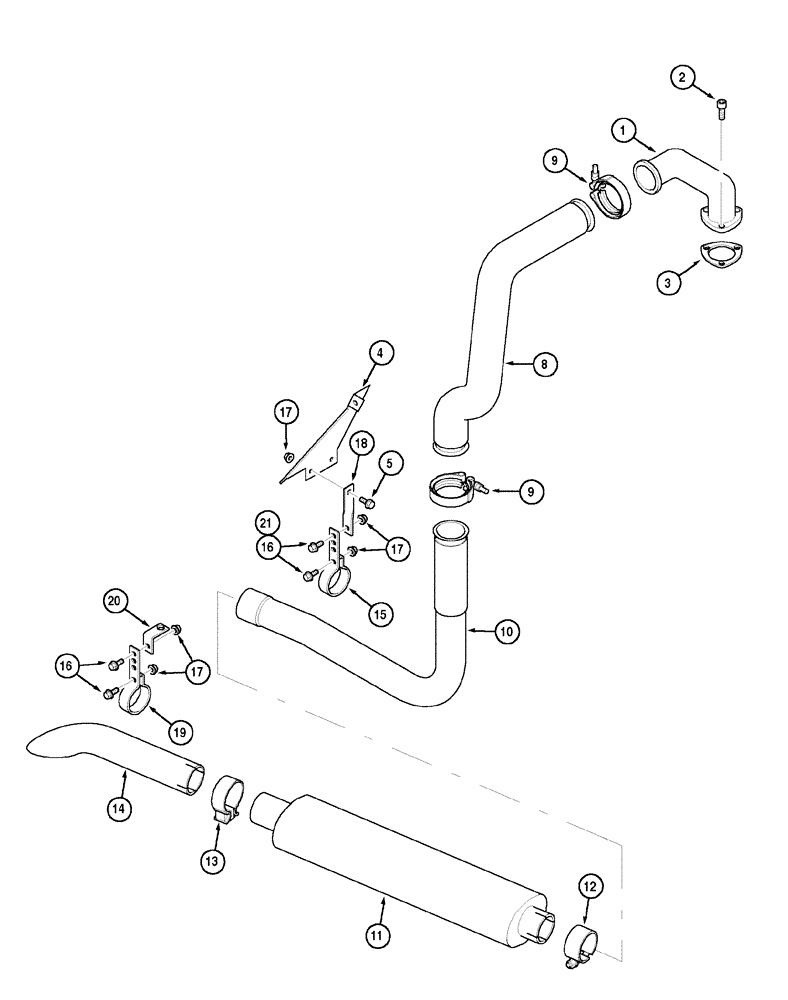

Запчасти Case IH C50 (02-11) - UNDERSLUNG EXHAUST, C50 (02) - ENGINE

1

251918A1

ADAPTER

1шт.

2

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

3шт.

3

235838A1

GASKET

1шт.

4

299391A1

GUARD

1шт.

5

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

8

282253A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , Front

1шт.

9

A170467

CLAMP,72mm ID

2шт.

10

284167A1

PIPE

1шт.

11

282084A2

MUFFLER

Includes 12

1шт.

12

283249A1

COLLAR

1шт.

13

283250A2

CLAMP

1шт.

14

283509A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , 420 mm, Rear

1шт.

15

1536736C1

SUPPORT

Serial No. - JJE1003769

1шт.

15

311470A1

SUPPORT

Serial No. JJE1003770 -

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

S/N JJE1003769

4шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

S/N JJE1003770

2шт.

17

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

18

282255A2

SUPPORT

1шт.

19

284085A1

CLAMP

1шт.

20

284159A1

SUPPORT

1шт.

21

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

S/N JJE1003770 -

2шт.
