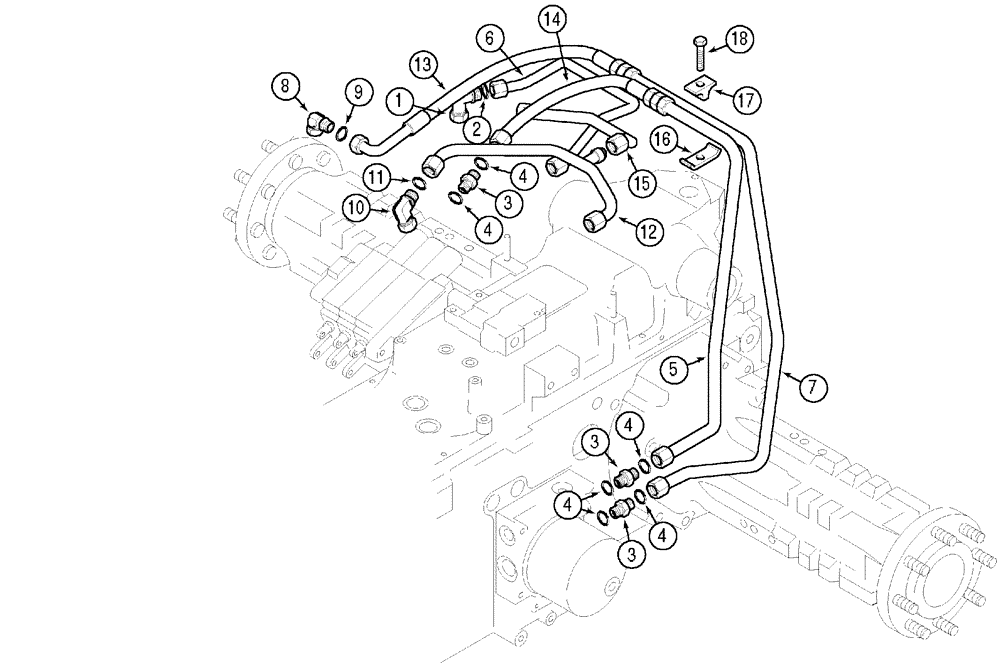

Запчасти Case IH C50 (08-12) - HYDRAULIC CIRCUIT, REAR (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 2

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 4

3шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

297079A2

PIPE

Return, See Page(s) 8-37

1шт.

6

297588A2

HYD TUBE

Flow Control Valve

1шт.

7

297612A2

HYD TUBE,0.625" OD, 475, 202 mm Length

Pressure

1шт.

8

250922A1

ELBOW

Includes 9

1шт.

9

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj Or, Incl. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

250924A1

PIPE

1шт.

13

250921A1

HOSE

440 mm (17-1/2 in), Auxiliary

1шт.

14

281789A1

HOSE

285 mm (11-1/2 in), Draft Control

1шт.

15

250925A1

PIPE

1шт.

16

282522A1

CLAMP

1шт.

17

282520A1

CLAMP

1шт.

18

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.
