Запчасти Case IH C50 (08-08) - REGULATOR VALVE AND CONNECTIONS - CREEP (08) - HYDRAULICS

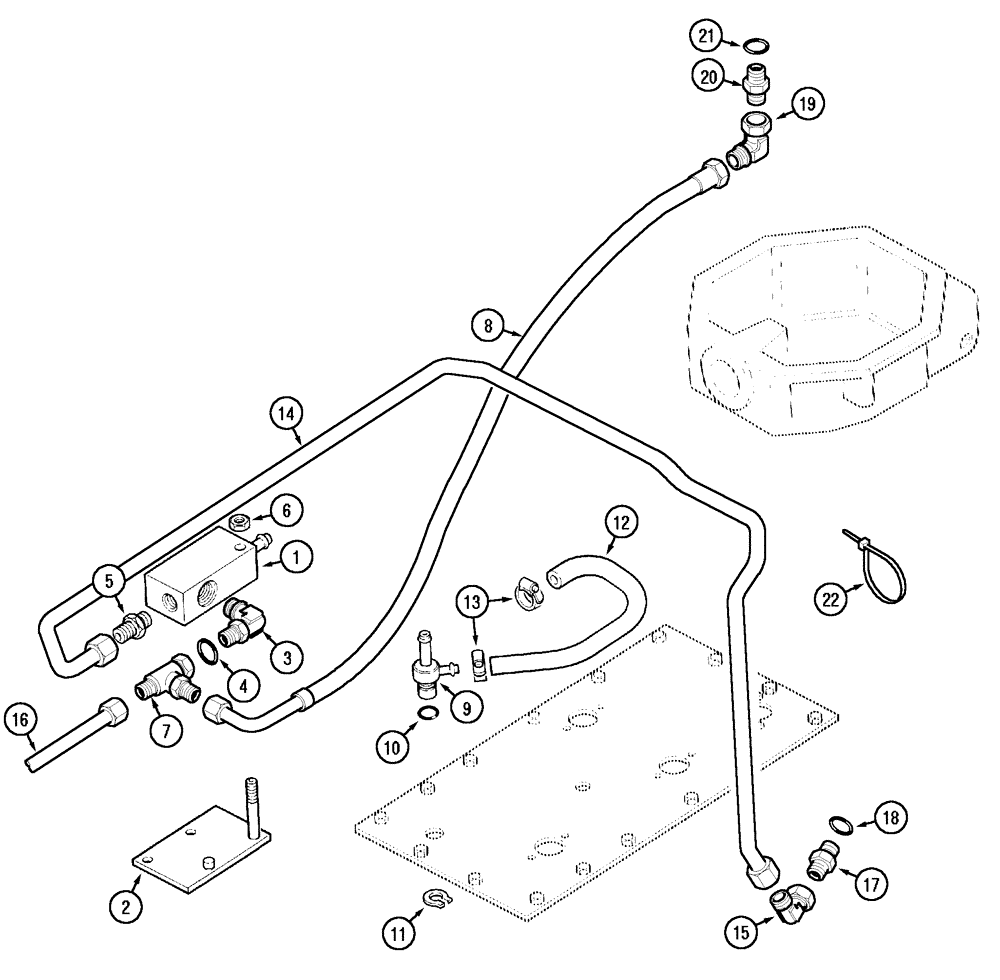

Схема запчастей Case IH C50 - (08-08) - REGULATOR VALVE AND CONNECTIONS - CREEP (08) - HYDRAULICS
3
17
9
4
16
14
22
12
20
19
7
21
8
6
18
13
5
11
1
2
10
15

Артикул

Название

Примечание

Количество

1

1343334C3

VALVE

See Page(s) 8-23

1шт.

2

1343335C1

LARGE PLATE

PLATE, LARGE

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

218-5492

HYD CONNECTOR,1/2" x 1/2" x 3/8" Run, Swivel 37 Degree Fitting

1/2 x 1/2 x 3/8 in

1шт.

8

302329A1

HOSE

1250 mm, 4WD

1шт.

9

1343344C1

PIPE

1шт.

10

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

11

100-1168

SNAP RING,#68, Ext

1шт.

12

302712A1

HYDRAULIC HOSE,6.35 mm ID x 380.00 mm, SAE 30R6, SAE 30R7

380 mm (15 in), Cut From 427683C1

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

14

280972A1

HYD TUBE

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

291371A1

LARGE HOSE

HOSE,LARGE , 520 mm (20-1/2 in)

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1/2 fl x sw

1шт.

20

123627A1

FITTING

1шт.

21

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

22

306132C1

CABLE TIE,14.5" L

CABLE STRAP , 14 in

4шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

50 ft, Bulk Length

1шт.

Выбрано товаров: 23
