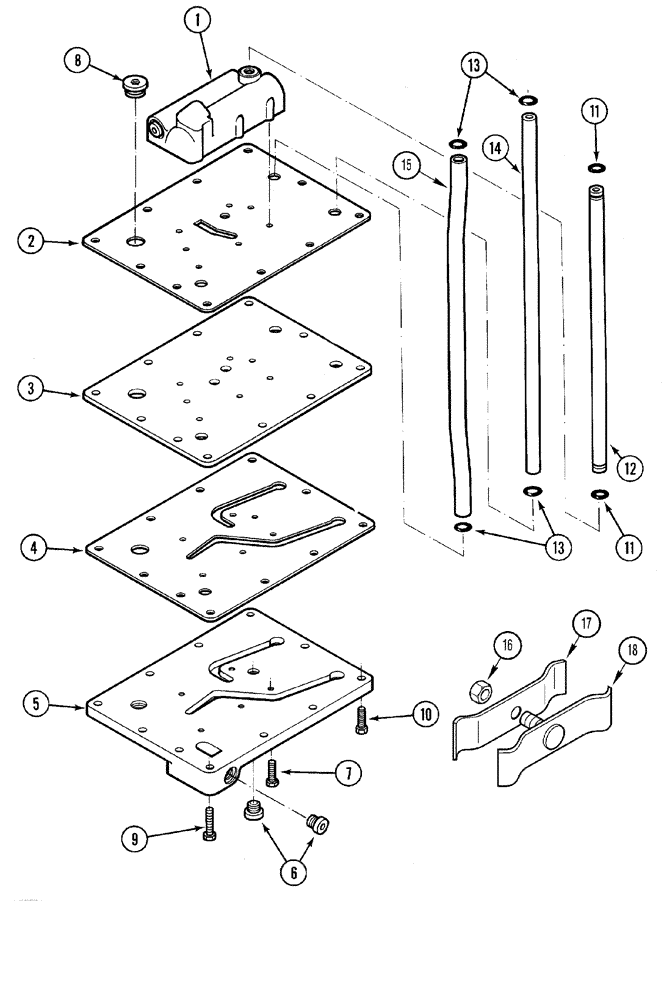

Запчасти Case IH C50 (08-07) - REGULATOR VALVE AND PLATE, WITH FORWARD AND REVERSE (08) - HYDRAULICS

1

110312A3

VALVE

Pressure Regulator, See Page(s) 8-21

1шт.

2

83009C3

GASKET

1шт.

3

83010C3

LARGE PLATE

PLATE, LARGE

1шт.

4

110316A1

GASKET

1шт.

5

110317A1

PLATE

1шт.

6

86258C1

PLUG,M12 x 1.5

2шт.

7

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

5шт.

8

87953C1

PLUG

With Packing Ring

1шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

9шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

83401C1

PIPE

Inlet

1шт.

13

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

14

402545R1

PRESSURE PIPE

Pressure

1шт.

15

115976A1

PIPE,12 mm OD, 370.25 mm Length

1шт.

16

231-1444

NUT,1/4"-20, GB

1шт.

17

118974A1

SHIN

1шт.

18

119218A2

SHIN

1шт.
