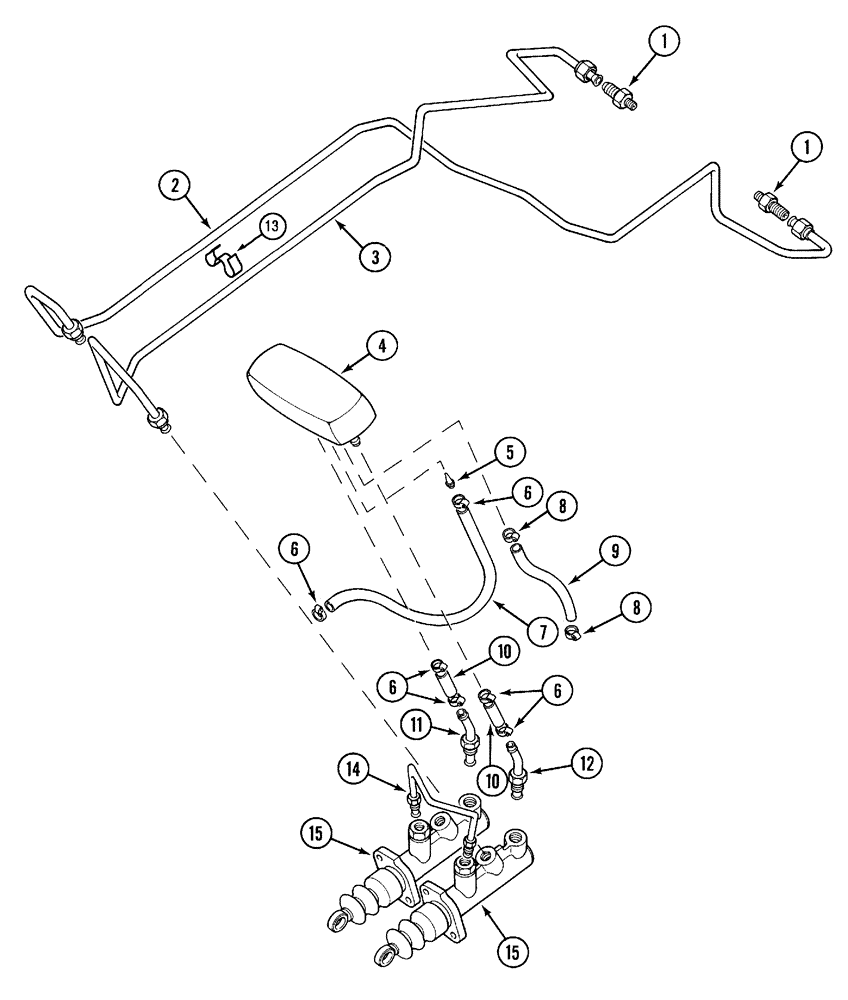

Запчасти Case IH C50 (07-02) - BRAKE CYLINDER AND CONNECTIONS (07) - BRAKES

1

3129671R1

FITTING

2шт.

2

291372A1

BRAKE LINE,8 mm OD, 900, 236 mm Length

Left, Without Trailer Brake

1шт.

2

291373A1

BRAKE LINE,8 mm OD, 900, 289 mm Length

Left

1шт.

3

1282573C2

BRAKE LINE

Right

1шт.

4

3129644R1

RESERVOIR

1шт.

5

537518R1

SCREEN

1шт.

6

3125239R1

COLLAR

6шт.

7

281127A2

HOSE

1шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

9

NSS

NOT SOLD SEPARAT

220 mm (8-5/8 in), Hose, Cut From 3125980RX

1шт.

10

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

11

98804C1

BRAKE LINE

Right

1шт.

12

98805C1

BRAKE LINE

Left

1шт.

13

275246A1

CLIP

2шт.

14

1287847C2

BRAKE LINE,4.78 mm OD, 79, 65 mm Length

1шт.

15

1287843C92

MASTER CYLINDER

CYLINDER,MASTER , See Page(s) 7-7

2шт.

3125980RX

LARGE HOSE

HOSE,LARGE , 305 mm (12 in), Bulk Length

1шт.
